SATRA TM3. BS-5131 Midsole Fiberboard Bending Test Machine with Power off Memory Function

SATRA TM3. BS-5131 Midsole Fiberboard Bending Test Machine with Power off Memory Function

  • SATRA TM3. BS-5131 Midsole Fiberboard Bending Test Machine with Power off Memory Function
  • SATRA TM3. BS-5131 Midsole Fiberboard Bending Test Machine with Power off Memory Function
SATRA TM3. BS-5131 Midsole Fiberboard Bending Test Machine with Power off Memory Function
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L29
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Midsole Fiberboard Bending Test Machine Number Of Test Pieces: 6 Sets
Flexural Frequency: 60±10cpm Lower Clamp And Weight: 2±0.01kg
Counter: LCD0~999,999 Power: AC220V50HZ
Highlight:

rub resistance tester

,

shoe wear tester

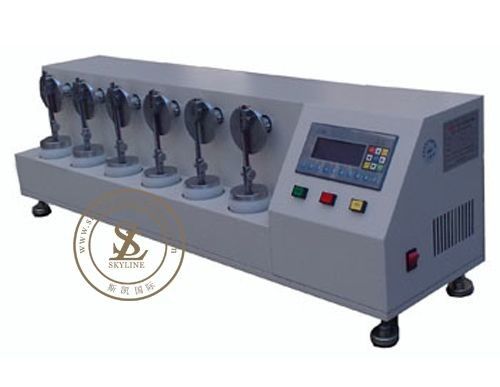

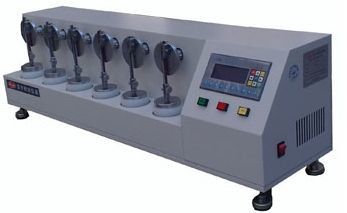

SL-L29 Midsole Fiberboard Bending Test Machine


Use
This machine is used to test the travel shoes such as leather shoes and casual shoes, walking shoes, and the tortuous quality of the midsole fiberboard. During the test, the test piece is continuously reciprocated to the left and right by 90 degrees until it breaks. To determine the resistance to the meandering index of the midsole as a comparison, the basis of the middle plate is selected, and the power-off memory function is provided.


Technical parameters

 Number of test pieces  6 sets
 Flexing angle  90 degrees left and right
 Flexural frequency  60±10cpm
 Lower clamp and weight  2±0.01kg
 Counter  LCD0~999,999
 Volume  105*25*35cm
 Weight  146kg
 Power  AC220V50HZ


Standards compliant
QB/T1472, SATRA TM3.BS-5131



SATRA TM3. BS-5131 Midsole Fiberboard Bending Test Machine with Power off Memory Function 0
