Leather Testing Equipment Electric Steel Hook Bending Test Machine For Test the Bending Resistance

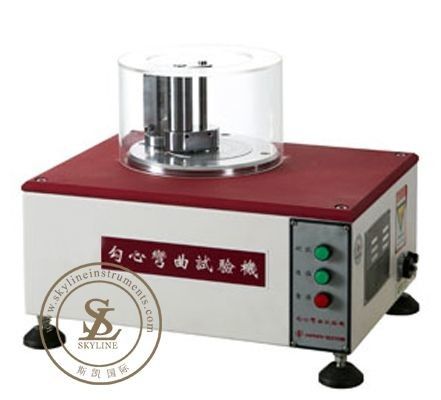

SL-L11 Electric Steel Hook Bending Test Machine


Use
The instrument is mainly used to test the bending resistance of the steel hook. The hook is inserted into the fixture to rotate the center column around the diameter of ∮10mm by 180°. The surface is cracked and broken or not, and the quality is judged.

Standards compliant
GB28011-2011

Technical parameters
Bending angle: 0-180°
Center column: ∮ 10mm
Dimensions (length × width × height): 400x300x290mm
Weight: about 25kg.
Power supply: AC220V 50HZ.

Steps
1. Turn on the power and press the reset button to return the clamp to the origin.
2. Adjust the position of the fixed fixture, insert the hook sample between the moving fixture and the fixed fixture.
3. Press the test switch to start the test. After the hook is rotated 180° around the center column, press the test button again to stop the test.
4. Whether the test sample breaks, and remove the sample to observe the broken state on the surface.
5. When the test is over, please turn off the power of the machine.
