ASTM - F1677 Portable Elbow Slip Tester to Determine the Slip Resistance of Footwear Sole

Name: ASTM - F1677 Portable Elbow Slip Tester to Determine the Slip Resistance of Footwear Sole
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L31
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-L31
MOQ:	1 unit
Price:	negoitable
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

SKYLINE:

Portable Elbow Slip Tester

Load:

10LB

Slide Bar Diameter:

φ12mm

Specimen Area:

3″×3″(76.2×76.2mm)

Holder Thickness:

1.25″(31.8m)

Baseboard Thickness:

3/4″

Volume:

(W×D×H) 22×43×46 Cm

Weight:

15kg

Packaging Details:

Plywood case

Highlight:

abrasion resistance tester

shoe wear tester

Product Description

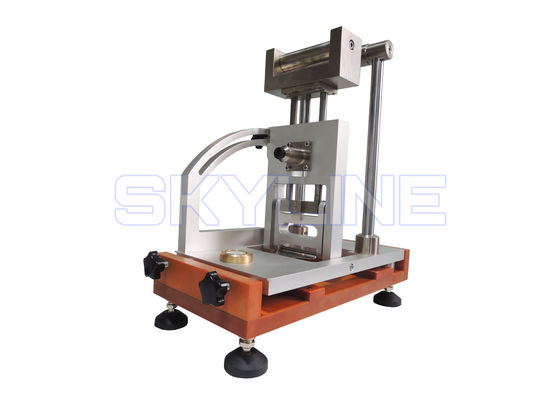

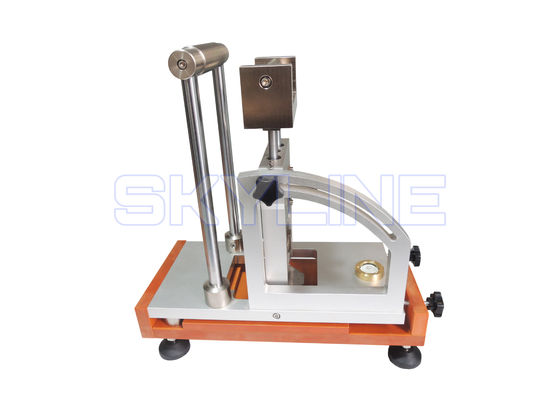

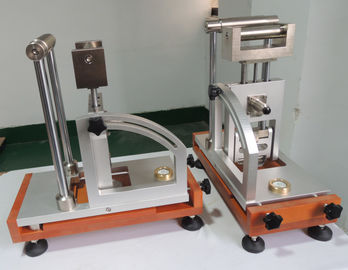

ASTM-F1677 Portable Elbow Slip Tester

Product information

The instrument measures the static friction coefficient of the test piece and the ground based on the principle of the load level and the vertical component ratio. The tester is adjustable and can be used on the ground of various materials such as dry, wet, oil or stained to test the slip resistance of the sole and heel material. Test the dry static coefficient and slip resistance of the sole and heel material.

Techncial parameters

Load	10LB
Slide bar diameter	φ12mm
Specimen Area	3″×3″(76.2×76.2mm)
Ground Area	4″×4″
Ground requirment	level ground
Holder thickness	1.25″(31.8m)
Baseboard thickness	3/4″
Distance from specimen to ground	1/8″~1/4″
Volume	(W×D×H) 22×43×46 cm
Weight	15kg

Standard

ASTM-F1677
