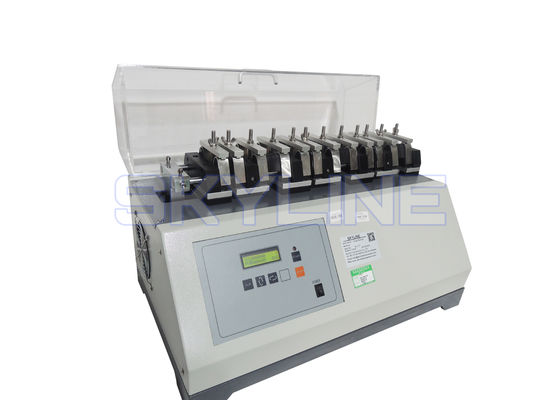

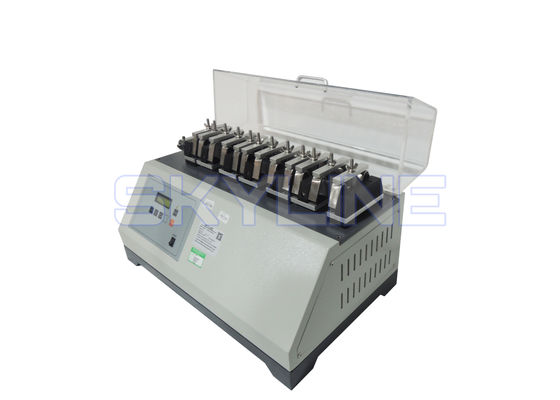

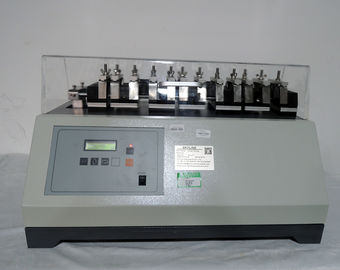

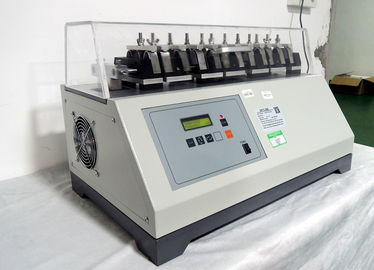

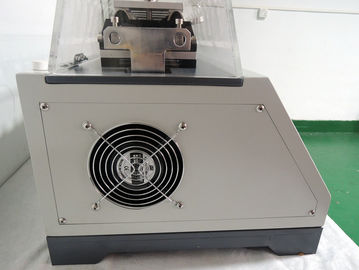

Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking

Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking

  • Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking
  • Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking
  • Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking
  • Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking
  • Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking
  • Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking
Shoes Vamp Flexing Tester For Vamp Flex Test Resistance To Creasing And Cracking
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: SATRA TM 25, ISO 4643, ISO 2023, WTM 25; EN ISO 7854:1997; ISO 22288
Model Number: SL-L17
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Vamp Flexing Tester Standards: SATRA TM 25, ISO 4643, ISO 2023, WTM 25; EN ISO 7854:1997; ISO 22288
Flexing Speed: 300±30CPM Dimension: 54 Cm × 35 Cm × 30 Cm
Weight: 64kg Sample Size: 64x64mm
High Light:

abrasion resistance tester

,

rub resistance tester

Shoes Vamp Flexing Tester



Application

This machine is used to test vamp flex test-resistance to creasing and cracking



Product information

To primarily intended to determine the propensity for materials to crack or be used to assess whether leathers are likely to produce salt spue. In particular the test simulates conditions in the vamp part of footwear during walking. The test can be conducted with either wet or dry specimens at room temperature or with dry specimens at sub zero temperatures. The method is applicable to all flexible materials and in particular those used to manufacture outers and linings of footwear uppers such as leathers, coated fabrics and textiles



Principle

The sample is fixed on the fixture, and the clamp moves relative to each other, so that when the two clamps are close, the specimen is bent. During the test, the clamp moves at a constant speed, and the specimen is repeatedly bent. Observe the damage of the specimen.



Technical parameters

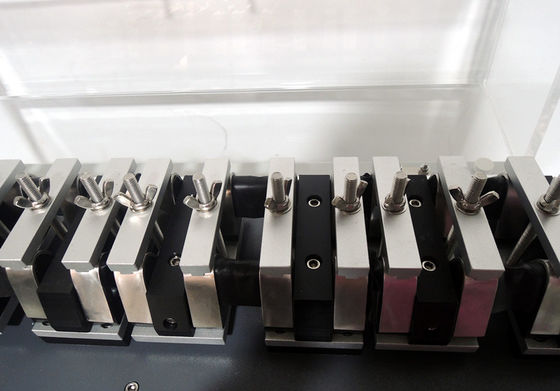

 Clamp  40degree V-shaped
 Number of specimen  12pcs
 Zigzag frequency  300±30 times/min
 Counter  LCD, 0- 999, 999
 Test stroke  19mm
 Flexing speed  300±30CPM
 Sample size  64x64mm
 Dimensions  54 cm × 35 cm × 30 cm
 Weight  64kg



Standards

ISO 4643

ISO 5423 section 5.2

EN ISO 20344-2004 Section 6.5.2

AS/NZS 2210.2 Section 6.5.2

EN ISO 22288

SATRA TM25



SL-L17 Vamp Flexing Machine.pdf



Please review video of the Vamp Flexing Tester operation as below link:

https://youtu.be/Co-7YpdPshI
