Name: Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L06
Price: 4,500.00 USD
Availability: InStock

Home Products Footwear Testing Equipment

Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester

Product Details:

Place of Origin:	CN
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-L06

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	plywood case
Delivery Time:	15 work days
Payment Terms:	Western Union, MoneyGram, T/T

Contact Now

Detailed Product Description

SKYLINE:	Ross Flexing Tester	Counter:	LCD, 0~99,999,999
Volume:	58 Cm × 60 Cm × 32 Cm	Weight:	58kg
Flexing Speed:	100±5cpm	Standards:	ASTM-D1052 SATRA TM60 ISO-5423
Highlight:	abrasion resistance tester , rub resistance tester

Ross Flexing Tester

Application

Shoes Ross Flexing Tester is used for flexing test at a 90°angle of rubber products, sole materials, PU, etc. by subjecting specifically prepared specimens to repeated bend flexing. The damage and cracking condition is then observed.

Principle

The sample is repeatedly subjected to deflection at a certain angle and a certain degree of frequency to examine the degree of damage and cracking.

Features

1. Be able to test 0~12pcs specimens;

2. Counter with LCD display;

3. 90°bending angle.

Key specification

Specimen No.	6 groups (12pcs)
Flexing angle	90°
Flexing speed	60~100c.p.m (adjustable)
Counter	LCD, 0~999,999
Dimensions	58 cm × 60 cm × 32 cm
Weight	approx. 58kg
Power supply	220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required)

Ross Flexing Tester.pdf

Company Profile.pdf

Testing standards
ASTM-D1052 SATRA TM60 ISO-5423

Please review video of the Ross Flexing Tester operation as below link:

https://youtu.be/hdrDmVXM57w

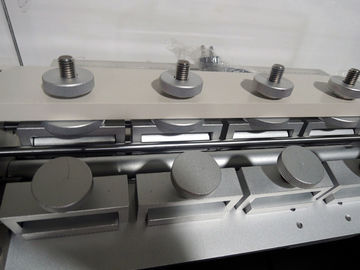

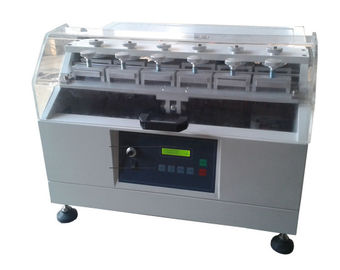

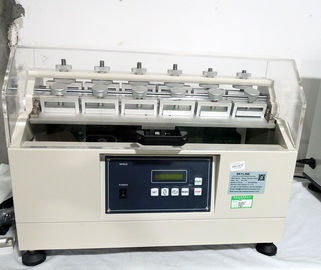

Footwear Testing Equipment ASTM-D1052 SATRA TM60 Ross Flexing Tester 0

What is Ross Flex Test?

Ross Flex Tester is designed to determine the resistance of vulcanized or synthetic elastomers to cut growth. The system does so under continuously bend flexing in 90°.
