Name: Textile Fabrics Vertical Fire Testing Equipment
Brand: SKYLINE
SKU: SL-F15
Rating: 5 (156 reviews)

Home Products Flammability Testing Equipment

Textile Fabrics Vertical Fire Testing Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-F15

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	neogitable
Packaging Details:	plywood case
Delivery Time:	10 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Contact Now

Detailed Product Description

SKYLINE:	Vertical Flammability Tester	Standard:	CFR 1615/1616 STANDARD FOR THE FLAMMABILITY OF CHILDREN'S SLEEPWEAR
Diameter Of Burner Opening:	Φ11mm ± 0.3mm Igniter	Dimension:	35 Cm X 40 Cm X 205 Cm
Burning Angle::	25° Or 90°	Flame Height:	30mm ± 2mm To 50mm±2mm (adjustable)
High Light:	flammability test chamber , flammability test apparatus

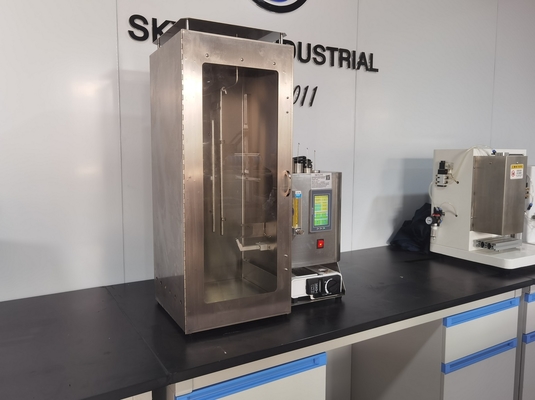

Textile Fabrics Vertical Fire Testing Equipment CFR 1615/1616 For Knitted Fabric

Application

Textiles vertical flammability test apparatus is applied to test the burning behaviour of woven fabric, knitted fabric, coated fabric and Laminated products. The equipment is designed according to JIS1091-1992.

Standards

CFR 1615/1616 standard for the flammability of children's sleepwear

CA TB117 Requirements, Test Procedure and Apparatus for Testing the Flame Retardance of Resilient Filling Materials Used in Upholstered Furniture

ASTM D6413 Standard Test Method for Flame Resistance of Textiles (Vertical Test)

ISO6940/6941 –Textile fabrics- Burning behavior-Measurement of flame spread properties of vertically oriented specimens

Specification

Burner	Φ11mm ± 0.3mm igniter
Burning angle	25° or 900
Flame height	30mm ± 2mm to 50mm±2mm (adjustable)
Burning time	0-999.9s±0.1s (adjustable)
Afterflame time	0-999.9s±0.1s
Afterglow time	0-999.9s±0.1s
Burning gas	98% propane gas
Clamps	U-sharp clamp, (L)422(W)89(TH)2mm, interior size: 356*51mm
Weights	54.5g, 113.4g, 226.8g, 340.2g, 453.6g each one
Working size	(W)329(D)329(H)767mm

Tag:

horizontal flammability tester,

flammability test chamber,

flammability test apparatus
