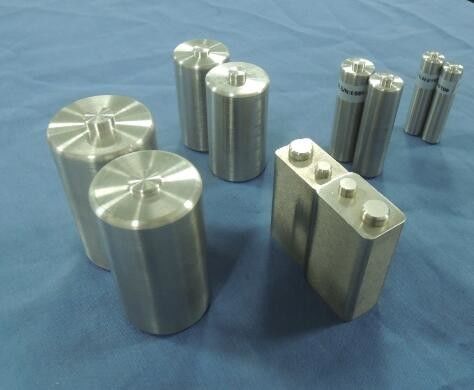

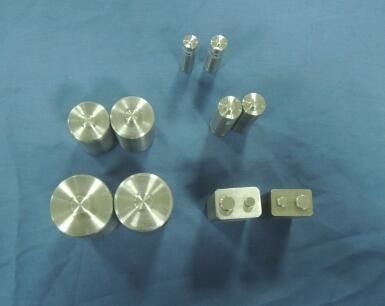

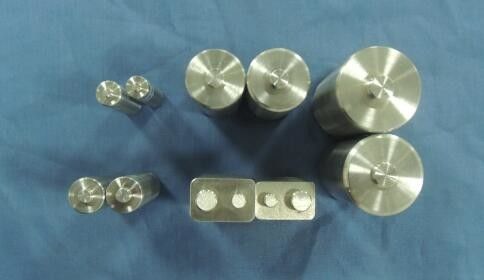

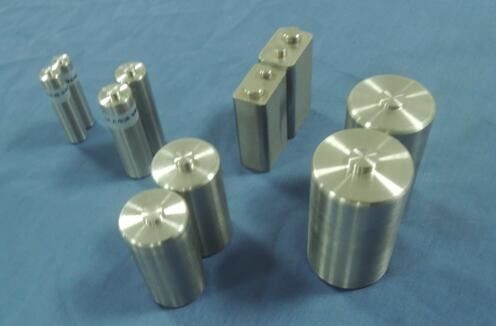

SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries

SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries

  • SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
  • SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
  • SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
  • SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
  • SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration Certificate
Model Number: SL-S103
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 5 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Hasbro Dummy Batteries Material: Stainless Steel
Standard: Hasbro SRS062 Torerance: 0.05/0.001mm
Highlight:

sharp edge tester

,

flame test chamber

SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries



Minimum Dimensions



Dimension AAA AA C D Tolerances
A 42.5 49 48.5 59.5 0.05mm/-0.00mm
B 5.16 8.25 19 19 0.05mm/-0.00mm
C 1 1.02 0.64 0.64 0.05mm/-0.00mm
D 3.81 5.5 7.5 9.5 0.00mm/-0.05mm
E 0.8 1 1.5 1.5 0.05mm/-0.00mm
F 9.5 13.5 24.7 32.2 0.05mm/-0.00mm
G NA NA 1.7 2.3 0.10mm/-0.00mm

























Maximum Dimensions



Dimension AAA AA C D Tolerances
A 44.5 50.5 50 61.5 0.00mm/-0.05mm
B 5.25 8.25 19 19 0.05mm/-0.00mm
C 0.66 1.02 0.64 0.64 0.05mm/-0.00mm
D 3.81 5.5 7.5 9.5 0.00mm/-0.05mm
E 1.79 2.25 3.02 3.23 0.00mm/-0.05mm
F 10.5 14.5 26.2 34.2 0.00mm/-0.05mm
G NA NA 1.7 2.3 0.10mm/-0.00mm



























9V Min/Max Dimensions



Dimension Maximum Tolerances Minimum Tolerances
A 17.5 0.00mm/-0.05mm 15.5 0.05mm/-0.00mm
B 49.2 0.00mm/-0.05mm 46.5 0.05mm/-0.00mm
C 45.77 0.00mm/-0.05mm 43.3 0.05mm/-0.00mm
D 26.5 0.00mm/-0.05mm 24.6 0.05mm/-0.00mm
E 12.95 0.00mm/-0.05mm 12.45 0.05mm/-0.00mm





















SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries 0
