Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CN |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-IP56X |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10 pcs/ month |
| Stainless Steel: | Coated Printed | View Windown: | Glass Two View Windows With Lights |
|---|---|---|---|
| Tray: | 2 Pcs Stainless Steel Trays | Temperature: | RT-250C |
| Temperature Display: | Digital Temperature Display | Standard: | IP56X-125L |
| High Light: | environmental testing equipment,environmental testing machine |
||

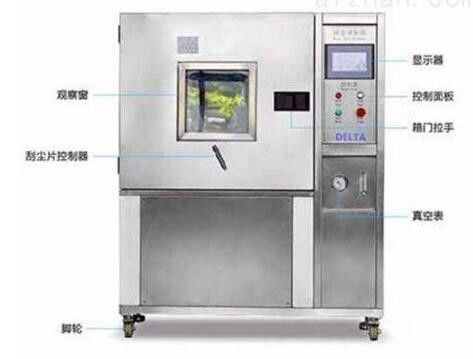

The sand and dust test chamber is used to test the sealing performance of the product shells. It is mainly used for the test of two grades of IP5X and IPX6X for enclosure protection grade. Through the simulation of sand and dust weather, outdoor lamps, auto parts, outdoor cabinets, power meters and other product are tested.
| Model | Inner dimension | Outer dimension | Power |
| SL-IP56X-125L | 500×500×500mm | 950×750×1500mm | 1.0KW |
| SL-IP56X-500L | 800×800×800mm | 1250×1020×1770mm | 1.5KW |
| SL-IP56X-1000L | 1000×1000×1000mm | 1450×1220×1970mm | 1.5KW |
| SL-IP56X-1500L | 1000×1500×1000mm | 1450×1720×1970mm | 2.0KW |
| Time setting range | 0-999 Adjustable | ||
| Temperature setting range | RT+10~70℃ (Please declare in order) | ||
| Test dust | French chalk | ||
| Dust dosage | 2-4Kg/m³ | ||
| Dust fall mode | Dusting in freedom | ||
| Vacuum degree | 0-10.0Kpa Adjustable | ||
| Protector | Leakage protection and short circuit protection | ||
| Supply voltage | 220V |
Notes:other sizes can be customized according to requirements.
