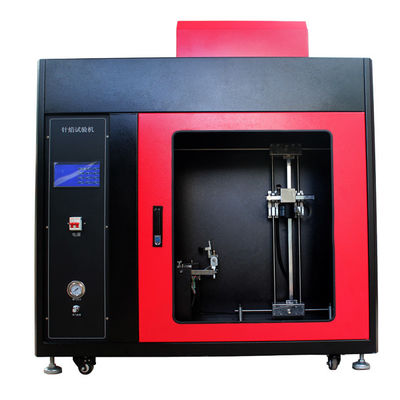

IEC 60332-2-2 Flammability Testing Equipment Needle Flame Tester

Brand Name:	SKYLINE
Model Number:	SL-7610
MOQ:	1 unit
Price:	negotiated
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Standards:

IEC60112-2003, UL746, ASTMD3638-92, DIN53480，IEC 60332-2-2 Etc

Measurement:

L1120 * W520 *H1250mm

Burning Room:

≥ 0.5m3

Power Supply:

220V/AC , 50Hz

Flame Height:

12mm ± 1mm

Packaging Details:

Plywood case

Supply Ability:

1 unit/ month

Highlight:

horizontal flammability tester

flammability test chamber

Product Description

220V / AC 50Hz Flammability Testing Equipment Needle Flame Tester

Use

It used to determine flammability, ignition temperature and fire fatalness for products, which include lighting, low voltage electronic appliances, household appliances, electric tools and instruments. It is also applied to plastics and insulation materials, electric connectors etc.

Standards

According to IEC60695-2-10~13, IEC829, IEC 60332-2-2,UL746A, DIN695 and VDE0471 standards.

Technical parameters

Burner	I/D Ø0.5mm ± 0.1mm, O/D≤Φ 0.9mm, and length ≥ 35mm made of stainless steel;
Angle of burner	Can be vertical (when adjust and measuring the flame height), and incline (when for testing)
Burning layer	Pine board (Thickness is 10mm) with a layer of wrapping tissue (12~30 g/m2, 200±5mm) on it
Burning gas	Butane or propane, the purity is 95%
Flame temperature	Heating rising from 100 ± 2°C to 700 ± 3°C within 23.5±1.0s
Flame height	12mm ± 1mm, can be adjust
Burning time	0 ~ 999.9s can be setting and digital displayer
Duration burning timer	1-999.9s, digital displayer and can press stay button for keeping the display)
Burning room	≥ 0.5m3 , with black color
Temperature sensor	K-type thermocouple and the diameter is Φ 0.5mm, the max temperature is 1100°C
Measurement	L1120 * W520 *H1250mm, and exhaust hole is Φ100mm
Power supply	220V/AC, 50Hz, can be design as customer’s request.

Flammability Testing Equipment Needle Flame Tester...

What is a needle flame test?

This method is used to test and assess the fire hazard presented by a plastic material using a needle flame. In particular, it calculates the severity, in other words the exposure time to the flame after which the material will just about meet the specified requirements
