| Place of Origin: | CN |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-IPX8-30A-20L |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Plywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10 pcs/ month |
| Stainless Steel: | Coated Printed | View Windown: | Glass Two View Windows With Lights |
|---|---|---|---|
| Tray: | 2 Pcs Stainless Steel Trays | Temperature: | RT-250C |
| Temperature Display: | Digital Temperature Display | Standard: | SL-IPX8-30A-20L |
| High Light: | environmental testing equipment,environmental testing machine |
||

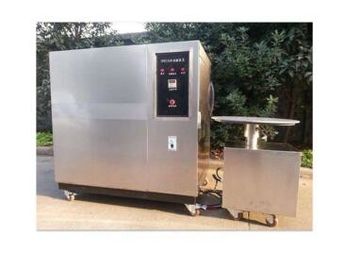

IPX8 Pressure Control Immersion Test Device Automatic Regulation
The main purpose
Under the device with shell protection grade (IP code) based mainly for electronic and electrical products,outdoor lighting,electric cabinet,communication equipment,diving equipment and
other products to simulate the water environment to test the protective performance of IP products. The test results are used to determine whether the requipment are met,so as to provide the design,development,optimization and ex factory inspection of the product.
| Model | SL-IPX8-30A-20L | SL-IPX8-50A-100L |
| Inner dimension | Inner diameter×height | Inner diameter×height |
| Outer dimension | 460×580×900mm | 600×780×1300mm |
| Flange thickness | 20mm | 25mm |
| Wall thickness | 3mm | 4mm |
| Range of test depth | 0-30m | 0-50m |
| Range of test pressure | 0-0.3Mpa / 0-3bar | 0-0.5Mpa / 0-5bar |
| Pressure display mode | Pressure pickup | |
| Pressure control mode | Automatic regulation | |
| Power | 100w | |
| Supply voltage | 220v |
Testing principle
The air pressure is applied to make the compressed air generate pressure on the water body,so
as to simulate the corresponding water depth environment.
