SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device

SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device

  • SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
  • SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
  • SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-7602L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
Standards: GB/T17650.1-1998, GB/T17650.2-1998, IEC60754-1:1994 Etc Tubular Furnace Input Power: 220V/3.8KW
Inner Diameter Of Quartz Tube: ф34±1mm SKYLINE: Halogen Release Measurement Device
Brand: SKYLINE Quartz Material Tubular Furnace Heating Furnace Chamber Size: L600mm×ф42mm
Highlight:

horizontal flammability tester

,

flammability test chamber

Halogen Release Measurement Device

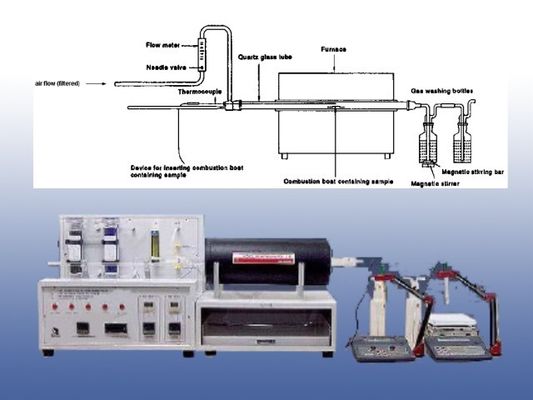

Application
Applies to determine total quantity of halogen-free and low halogen flame retardant cable’s halogen acid gas and measure PH value and conductivity to determine the acidity gas.


Main parameter

 Quartz material tubular furnace heating furnace chamber size  L600mm×ф42mm
 Tubular furnace input power  220V/3.8KW
 Inner diameter of quartz tube  ф34±1mm
 According to inner diameter of quartz tube gas flow-meter calculate the setting flux  ρ=V·πD2/4=20*3.14*342 /4ml/h=302ml/min±10%
 Accessories  pH meter and conductivity analyzer one for each, 500mL gas washing and absorbing device and connection head.



Standard
According to GB/T17650.1-1998, GB/T17650.2-1998, IEC60754-1:1994, IEC60754-2:1991, GB/T19666-2005, GA306.1-2007, GA306.2-2007, UL2556-2007.

SL-7602L Flammability Testing Equipment , Halogen Release Measurement Device 0

Tag:

horizontal flammability tester,

flammability test chamber,

flammability test apparatus
