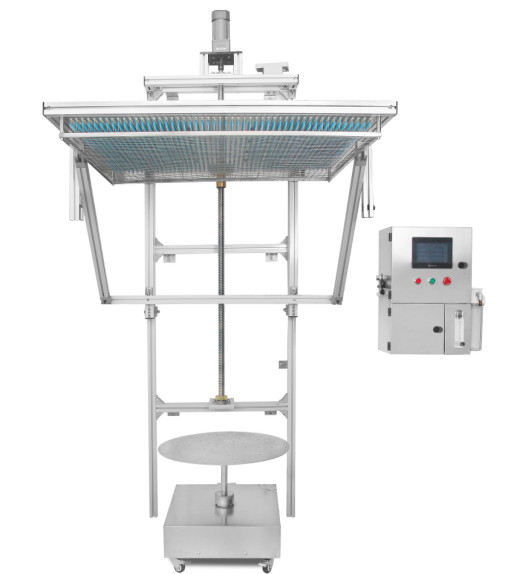

Wall-mounted Stainless Steel Environmental Test Chamber / Vertical Drip Tester for IPX1 , X2 Test
Application
The main function of this equipment is to test the physical and other related performance of products under the conditions of simulated dripping weather for products such as electrical and electronic products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their components and parts. After the test, through the test to determine whether the performance of the product meet the requirements in order to facilitate product design, improvement, testing and factory inspection.
Standards
IEC60529: 1989 + A1: 1999 + A2: 2013, ISO20653 Road Vehicles -
Functional parameters
| Apply to the product | IPX1, IPX2 test |
| Drip tank | 1000 × 1000 × 50mm (length × width × height) |
| Dripping area | 0.64m2 |
| Precipitation | IPX1 (1 ± 0.5mm / min), IPX2 (3 ± 0.5mm / min), the user set their own drop (error: ± 0.5mm / min) |
| Water tank material | stainless steel |
| Drip aperture | φ0.4mm |
| Drip hole spacing | 20 * 20mm |
| Drip tank height | 200mm ~ 2000mm (equipment automatic control adjustment) |
| Set the range | 0s-999s (can set their own time) |
| The test completed automatic discharge water tank water | |
| Rack materials | industrial alloy aluminum |
| Water tank type | closed water tank (L800mm * W800mm), SUS304 Material |
| The machine installation | the use of four pillar-type structure bracket fixed on the wall |
| Dimensions | L950mm * W1000mmn * H2300mm |
| Power |
220V, 1phase |
The main configuration
Rack aluminum profiles
Rail SU304 # stainless steel
Electric hoist AC220V
Vacuum drip board SU304 # stainless steel made

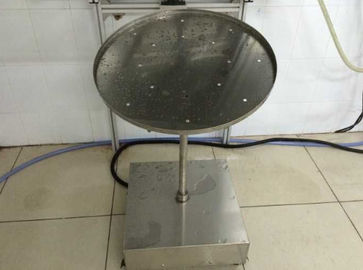

Turntable SU304 # stainless steel made
Drip needle holder brass material
Drip needle Φ0.4mmSU304 # stainless steel
PLC controller
7-inch touch screen color
Turntable stepper motor
Leakage switch 20A, 2P
Low voltage electrical /
Relay DC24V
Switching power supply 24V, 50W
Glass panel flowmeter LZT-15
Filter 10-inch single-stage water purifier
Pipe fittings PVC + SU304 # stainless steel
Needle nozzle needle SU304 # stainless steel
