Name: ASTM D 2863 ISO 4589-2 Flammability Testing Equipment , Digital Oxygen Index Tester
Brand: SKYLINE
SKU: SL-FL50
Rating: 4.9 (162 reviews)

Home Products Flammability Testing Equipment

ASTM D 2863 ISO 4589-2 Flammability Testing Equipment , Digital Oxygen Index Tester

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-FL50

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiated
Packaging Details:	plywood case
Delivery Time:	20 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

SKYLINE:	ISO 4589-3 Oxygen Index Tester	Standards:	STM D 2863, ISO 4589-2, NES 714 ISO 4589-3,NES 715
Application:	Test The Required Oxygen Concentration(volume Percent) In The Process Of Polymer Burning	Height Of The Combustor:	4500mm
Flowmeter:	160~1600L	Working Pressure:	0.05-0.15Mpa
Resolution Of The Pressure Gauge:	0.01Mpa	Input Pressure:	0.2-0.3Mpa
High Light:	horizontal flammability tester , flammability test apparatus

ASTM D 2863 ISO 4589-2 Digital Oxygen Index Tester

Applications
measures minimum oxygen concentration as necessary when specimen combustion. This equipment’s the oxygen analyser is adapted Paramagnetic Type which has a precise, long life, less error rate and high reliability.

Standards
ASTM D 2863, ISO 4589-2, NES 714 GB/T 5454 GB/T 10707-2008 GB/T 8924-2005 GB/T 16581-1996 NB/SH/T 0815-2010 TB/T 2919-1998 IEC 61144-1992 ISO 15705-2002 ISO 4589-2-1996

Technical Parameters

Internal diameter of the combustor	100mm
Height of the combustor	450mm
Pipe hole diameter of the long pole igniter trailing end diameter	2±1mm
Flowmeter	160~1600L/Hadjustable
Precision of the pressuregauge	level 2.5
Resolution of the pressure gauge	0.01Mpa
Resolution of the Oxygen concentrate indicator	0.1%
Oxygen sensor	imported from Germany with high precision
Gas source	the GB3863 specified oxygen, the GB3864 specified nitrogen
Experiment environment temperature, humidity	10~35℃,45-75%
Input pressure	0.2-0.3Mpa
Working pressure	0.05-0.15Mpa
Sample type	self-supporting materials and non-self- supporting materials
Overall dimensions	700mm(W)×400mm(D)×600mm(H)
Power supply	AC220V, 50/60Hz 1A
Air source source	oxygen, nitrogen( prepared by users)

What is oxygen Index test?

Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index) ASTM D2863. Scope: ASTM D2863 is a method to determine the minimum concentration of oxygen in an oxygen/nitrogen mixture that will support a flaming burn in a plastic specimen.

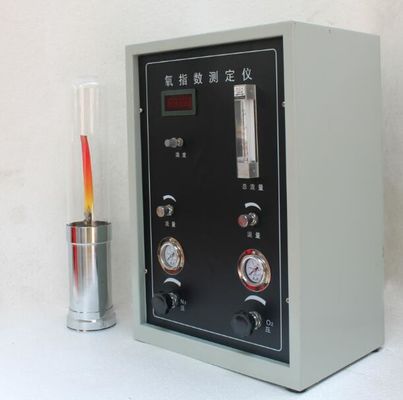

ASTM D 2863 ISO 4589-2 Flammability Testing Equipment , Digital Oxygen Index Tester 0
