Movable Gantry Rollator Durability Testing Machine with Servo Actuator

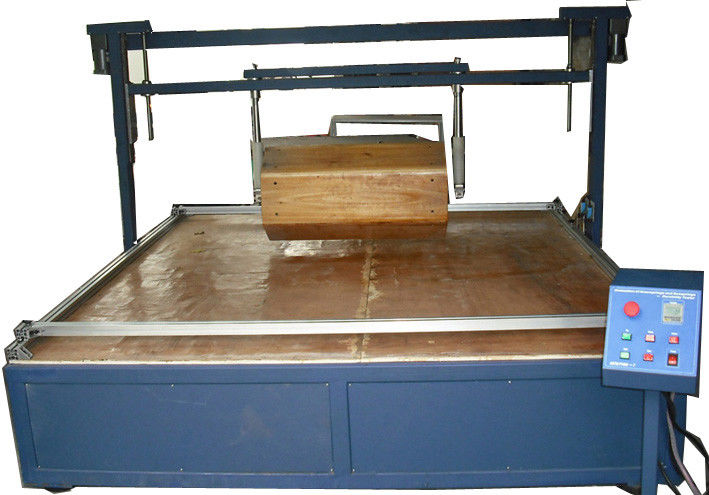

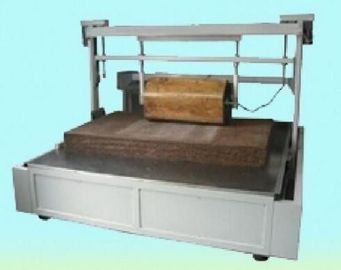

Movable Gantry Rollator Durability Testing Machine with Servo Actuator

    • Movable Gantry Rollator Durability Testing Machine with Servo Actuator
    • Movable Gantry Rollator Durability Testing Machine with Servo Actuator
  • Movable Gantry Rollator Durability Testing Machine with Servo Actuator

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-T07

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: plywood case
    Delivery Time: 30 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Mattress Durability Testing Machine Rollator Length: 915±75mm
    Rollator Horizontal Stroke: 1600mm Can Be Set Rollator Vertical Stroke: 0-400mm
    Max Dimension Of Specimen: 1800×2200mm Cylinder Weight: 140 KG.

    Movable Gantry Rollator Durability Testing Machine with Servo Actuator



    Application

    It is use to test the durability of all kinds of mattress.

    This machine use high precision Servo linear electric cylinder to control the force, displacement, speed. One-step installation, mattress rollator test. When finish the test, the system will lift the roller to origin automatically.



    Standard

    ASTM F 1566 BSEN 1957



    Key specification

     Hexagonal roller  240 ± 10Lb (109 ± 4.5kg), length 36 ± 3in (915 ± 75mm)
     Six-cylinder edge distance  17 ± 1in (430 ± 25mm)
     ASTM 1566

     Max. mattresses width

    Min. 70% of mattresses width or 38in (965mm) choose a smaller value between them;

     Test speed  ASTM 1566: no more than 20 cycles / min
     Measured disc  ASTM 1566: diameter 13.54 ± 0.2in (344 ± 5mm)
     Mattress rollator size (WxDxH)  267cmx300cmx195cm
     Weight (approx.)  about 2000kg
     Power supply  three-phase four-wire AC 380V 6A



    Techincal parameters

     Roller  Woodiness,six sided roller
     Roller length  915±75mm
     Roller specification  Diameter of Roller (Flat to Flat )432±25mm
     Roller weight  109±4.5KG
     Roller horizontal stroke  1600mm can be set
     Rollator vertical stroke  0-400mm
     Rollator test frequency  16 cycles/ minute can be set
     Testing times  0—999,999 times can be set
     Max dimension of specimen  1800×2200mm





    Movable Gantry Rollator Durability Testing Machine with Servo Actuator
