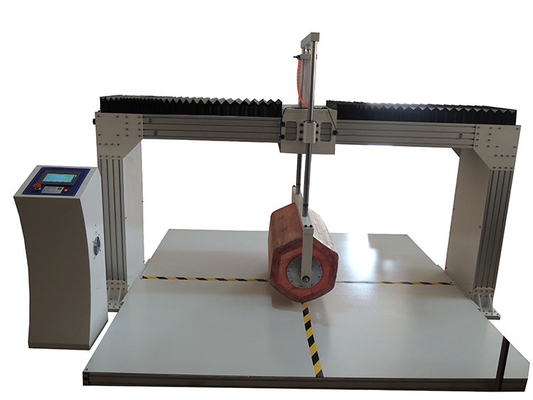

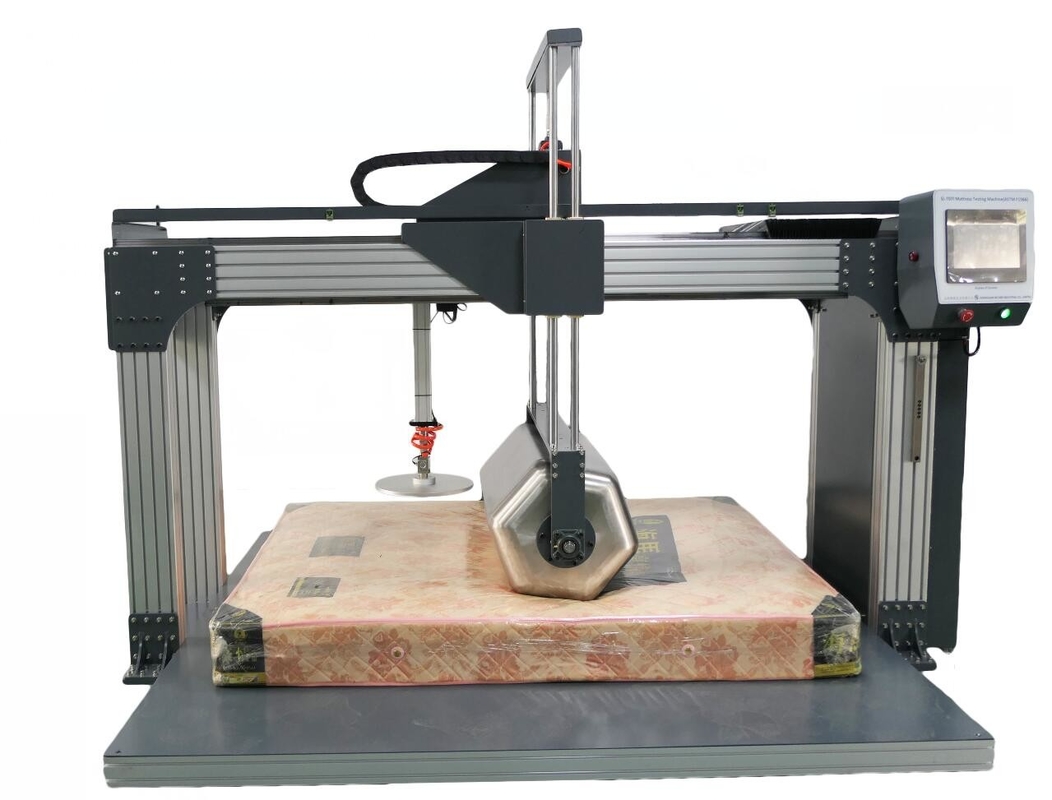

ASTM F1566-99 Mattress Hardness and Edge Durability Testing Machine With Sevro Motor

ASTM F1566-99 Mattress Hardness and Edge Durability Testing Machine With Sevro Motor

ASTM F1566-99 Mattress Hardness and Edge Durability Testing Machine With Sevro Motor

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 30 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: ASTM F1566-99 Mattress Hardness And Edge Durability Testing Machine Capacity: 2KN
Stroke: 500mm Load Speed: 90±5mm/min
Drive Motor: Sevro Motor Loading Pat: Diameter 355mm,Radius Of Curvature Of The End R800mm

Mattress Hardness & Edge Durability Testing Machine



Product Information

This machine is used for testing the hardness of spring mattress and evaluating the hardness level.
It also can be used for durability test for the surface of mattress and durability test for the edge. Evaluate the test data before and after the test.
Record the curve of loading process and evaluate the value of hardness according to relevant test data.
It is made of aluminum, generous and beautiful.
Control system adopts special high precision and high intelligence ARAM controller.
It can be run under WINDOWS system with special test software.
The software interface is clear and easy to be operated.



Specification

 Loading pat  Diameter 355mm,Radius of curvature of the end R800mm
 Capacity  2kN
 Load speed  90±5mm/min
 Stroke  500mm
 Modulation of loading plate's position  Left and right 300mm
 Drive Motor  sevro motor
 Dia  355mm Spherical curvature radius: 800mm





Testing Standards

BS EN1957-2000
ASTM F1566-99
QB/T1952.2-2011
