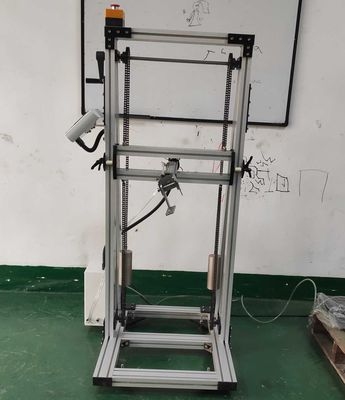

0 ~ 90 Degree Angle Furniture Testing Equipment Storage Pivoted Doors Testing Machine

0 ~ 90 Degree Angle Furniture Testing Equipment Storage Pivoted Doors Testing Machine

    • 0 ~ 90 Degree Angle Furniture Testing Equipment Storage Pivoted Doors Testing Machine
    • 0 ~ 90 Degree Angle Furniture Testing Equipment Storage Pivoted Doors Testing Machine
  • 0 ~ 90 Degree Angle Furniture Testing Equipment Storage Pivoted Doors Testing Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: Calibration certificate
    Model Number: SL-T23

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: carton box
    Delivery Time: 3 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: Hinge Durability Tester Angle: 0~90 Degree
    Beams Maximum Height: 1200mm Brand: SKYLINE
    Dimension ( W X D X H ): 150x100x160cm Warranty: 18 Months

    Furniture Testing Equipment Storage Pivoted Doors Testing Machine



    Product introduction
    This machine is suitable for durability testing of wooden cabinets and cupboard's door.
    Connect the cupboards furniture, Simulation daily in the process of using situation of sliding door closing and opening. After specific cycles and check if the hinge damage or defective
    Standards: QB/T 2189 ,GB/T 10357.5
    Can be used to test the installation products, also can connect all kinds of doors and lateral strong connection and without any force which affect the test.
    Test equipment is smoked pull length Angle can be adjusted according to actual test requirements, and the adjusting range in length is 100 mm to 500 mm, Angle 0 ~ 90 ℃ cupboard door hinge durability test enginery testing activities can take arrows speed control parts, and can according to need in 0.25 m/S ~ 2 m/S on the adjustment between
    Test equipment is smoked pull length Angle can be adjusted according to actual test requirements, and the adjusting range in length is 100 mm to 500 mm, Angle 0 ~ 90 ℃
    Opening and closing power auxiliary instrument measurement with, according to the drawer can pause when opening and closing time adjust, can be set testing machine number



    Technical parameters

     7control method  PLC(touch screen)
     Test speed  10~18 time/min adjustable
     Cylinder trip  800mm
     Beams maximum height  1200mm
     Dimension(WxDxH)  150x100x160cm
     Weight(about)  ≈85Kg
     Air source  7kgf/cm^2
     Power  1∮ AC 220V 50Hz 3A
     Angle  0~90 degree
     Timer counter  0-9,99999



    0 ~ 90 Degree Angle Furniture Testing Equipment Storage Pivoted Doors Testing Machine
