Name: BS 5852 Flammability Tester Upholstered Furniture Testing Foam Testing
Brand: Skyline
SKU: SL-S33
Rating: 4.6 (188 reviews)

Home Products Furniture Testing Equipment

BS 5852 Flammability Tester Upholstered Furniture Testing Foam Testing

Product Details:

Place of Origin:	China
Brand Name:	Skyline
Certification:	CE, Rosh, Calibration
Model Number:	SL-S33

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	plywood case
Delivery Time:	15 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Small Stainless Steel Testing Frame:	450X300X150mm	Inner Dimensions Of Backrest Frame:	450±2×450±2mm
Inner Dimensions Of Chair Frame:	450±2×300±2mm	Big Stainless Steel Testing Jig:	450X450X300mm
The Airflow Of Butane:	45 ± 2mL / Min（when 25℃)	Flame Height:	35mm
Stainless Steel Combustion Tube Outer Diameter:	Outer Diameter: 8.0±0.1mm Inner Diameter: 6.5±0.1mm Length: 200+/-5mm
High Light:	Foam Testing Flammability tester , BS 5852 Flammability Tester

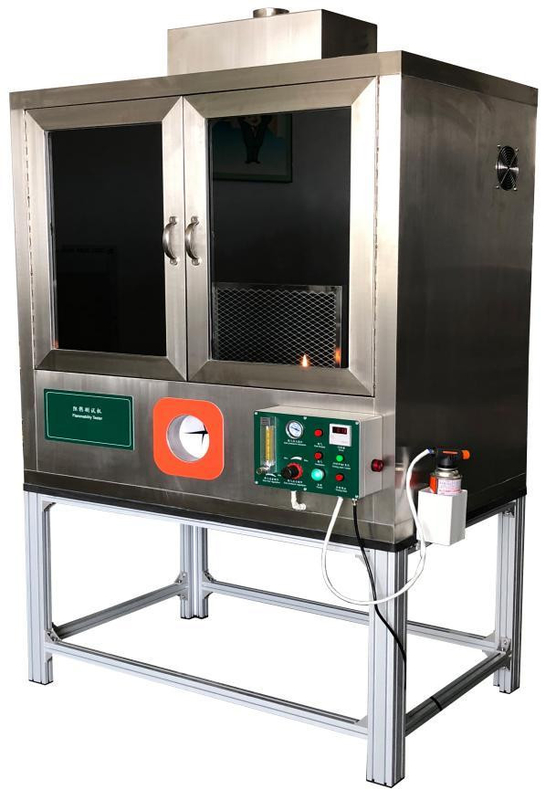

BS 5852 Flammability Tester

BS 5852 Flammability Tester Upholstered Furniture Testing Foam Testing 0

DESIGN PICTURE

BS 5852 Flammability Tester Upholstered Furniture Testing Foam Testing 2

Product introduction

This machine is used to simulate the ignitability of some special parts of furniture assembly placed in a certain sequence when ignited by a certain amount of heat, providing reference data for furniture design and manufacturing

Standard test BS 5852

Technical parameters

Small stainless steel testing frame	450X300X150mm
Inner dimensions of backrest frame	450±2×300±2mm
Inner dimensions of chair frame	450±2×150±2mm
Big stainless steel testing jig	450X450X300mm
Inner dimensions of backrest frame	450±2×450±2mm
Inner dimensions of chair frame	450±2×300±2mm
The airflow of butane	45 ± 2mL / min(when 25℃)
Flame height	35mm
Stainless steel combustion tube outer diameter	Outer diameter: 8.0±0.1mm Inner diameter: 6.5±0.1mm Length: 200+/-5mm

Optional Accessory
No. 0 Fire source: Cigarettes	Length:68mm Diameter:8mm Weight:1g combustion speed: 50mm/12.03min
White polyester cloth	BS 5852
Wooden Frame	BS 5852
No. 5 Wooden Frame	BS 5852
No. 6 Wooden Frame	BS 5852
No. 7 Wooden Frame	BS 5852
Flame-retardant foam	BS 5852
Combustible foam	BS 5852
CaCI2.6H20	BS 5852
NaHCO3	BS 5852
Wetting agent	BS 5852
Nozzles	BS 5852
