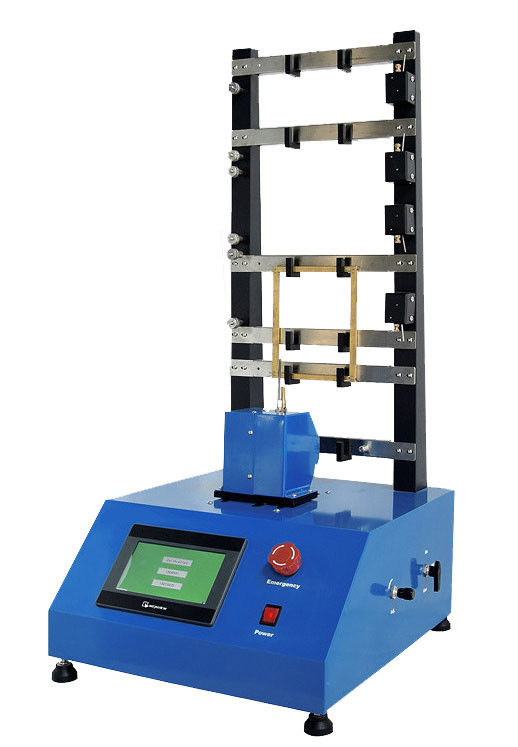

AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester

AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester

    • AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester
    • AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester
  • AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: Fire Testing Equipment
    Model Number: SL-FTE05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Fire Testing Equipment
    Packaging Details: strong packing
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union,paypal
    Supply Ability: 3 pcs/month
    Contact Now
    Detailed Product Description
    Manufactured: According To ISO 15025 Standards The Angle Of The Burner: Can Be Pre-setted And Adjusted Automatically
    Flame Application Time: Can Be Pre-setted And Operate Automatically Size: 800mm (L) X 600 Mm (W) X 900mm (H)
    Weight: 40KG Power Supply: 220V, 50HZ

    AQ 6103,ISO 6940,ISO6941,ISO15025 Fire Testing Equipment Vertical Flame Tester



    Introduction

    Vertical Flame Tester is suitable for the measurecan be pre-setted and adjusted automatically.ment of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.​


    Feature
    The apparatus is designed and manufactured according to ISO 15025 standards.
    The apparatus can be updated to meet the requirement of ISO6941,ISO 6940 etc by using different specimen holders.
    The apparatus consists of mounting frame, gas burner, test specimen holder with Supporting pins.
    The angle of the burner can be pre-setted and adjusted automatically.
    Flame application time can be pre-setted and operate automatically.
    Afterflame time and afterglow time recorded by LCD screen



    standard:AQ 6103,ISO 6940:2004, ISO 6941:2003, ISO 15025:2000,GB/T 5456:2009

    Size 800mm (L) X 600 mm (W) X 900mm (H)

    Weight 40KG

    Installation requirements

    Electrical requirements: 220V, 50HZ

    Environmental Requirements: Temperature (20+2)degree C, Humidity (65+5)%

    Gas requirements: propane gas
