IEC61034 Fire Testing Equipment Wires & Cables Smoke Density Test Room

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-FL51

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	USD
Packaging Details:	Plywood case
Delivery Time:	35 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

SKYLINE:	Cables Smoke Density Test Room	Burning Room Size:	W3000D3000H3000mm
Capacity:	>4.0 M3	Standards:	IEC61034-1997, GA306.1-2007, GA306.2-2007,
Standard Fire Source::	1.00L±0.01L Alcohol	Measurement Range:	0～100%;
High Light:	flammability test apparatus , flammability testing labs

IEC61034 Wires & Cables Smoke Density Test Room / Flammability Test Equipment

Application

Applies to check the size quantity of producing smoke of cables or optical fiber under prescriptive fire source

Standards

According to IEC61034-1997, GA306.1-2007, GA306.2-2007

Main parameters

Burning room size	W3000D3000H3000mm (27m3), made of stainless steel
Standard fire source	1.00L±0.01L alcohol
Illuminant nominal power	100w, nominal voltage:DC12v±0.01V
Sensor	photocell, load resistance≤100Ω;
Measurement range	0～100%;
Alcohol dish	bottom: 210mm×110mm
Top	240mm×140mm
Height	80mm
Desktop fan	Rotating shaft is 200mm～300mm from found, 500mm±50mm from wall. Fan blades size of 300mm ± 60mm, wind speed:7～15 m3/min;
Min size	100mm×100mm,height: 2150mm

There is a transparent seal window by two sides of the burning chamber.

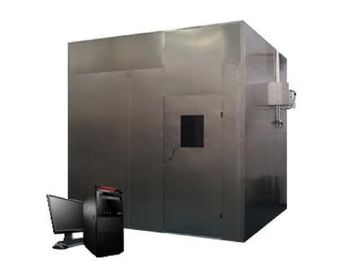

IEC61034 Fire Testing Equipment Wires & Cables Smoke Density Test Room 0

How is smoke density measured?

Smoke density in air is measured, like fog and smog, by having a beam of light of known intensity a given distance away and measuring how much light gets through.2016年3月16日
