|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||plywood case|
|Delivery Time:||15 working days|
|Payment Terms:||T/T, Western Union,PayPal|
|Supply Ability:||1pcs /month|
|SKYLINE:||Full Facemasks Equipments Tester||Application:||Safety Protection|
|Dimensions:||1200mm (W) X 700mm (D) X 1,900mm (H)||Weight:||176KG|
|Electrical Requirements:||220V, 10A||Gas Requirements:||Propane Gas|
|Standard:||CSN EN 136:1998 GB/T 16556:2007|
flammability test apparatus,
flammability testing labs

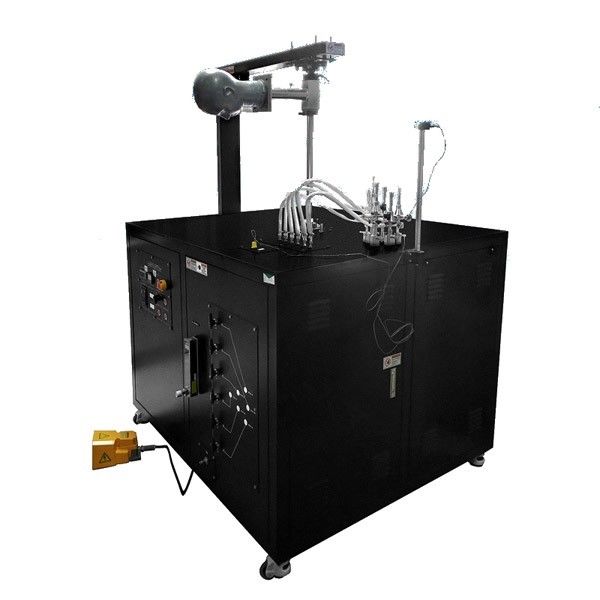

Respiratory Protective Devices Full Facemasks Equipments Tester
Full Cover Combustion Resistance Tester is suitable for testing the combustion resistance of self-contained open-circuit compressed air respirator (air respirator) in EN136 standard. The combustion performance of air respirator can be tested by means of 6-point burning or single-point burning flame impact.
1. Equipped with the first metal texture simulation device, it can be used for wearing air respirator device.
2. It is equipped with K-type thermocouple, which is placed at 250mm on the top of the highest burner and can detect the temperature of 950 + 50 degrees.
3. Equipped with 6 TEKLU burners, the height of each burner can be adjusted by itself.
4. The gas flow rate supplied to the burner can be adjusted and controlled by a rotor flowmeter.
5. The pressure regulating device can adjust the pressure supplied to the burner to 10-50KPA.
6. Metal texture simulation head can be rotated, and the rotation speed can be adjusted to meet the standard test requirements.
7. Single-point combustion and six-point combustion can be realized, and can be tested according to different standards.
Application: Safety Protection
Standard CSN EN 136:1998 GB/T 16556:2007
Dimensions 1200mm (W) x 700mm (D) x 1,900mm (H)
Electrical requirements: 220V, 10A
Gas requirements: propane gas
