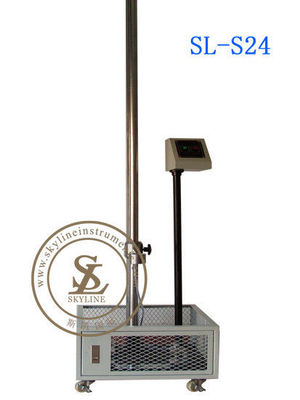

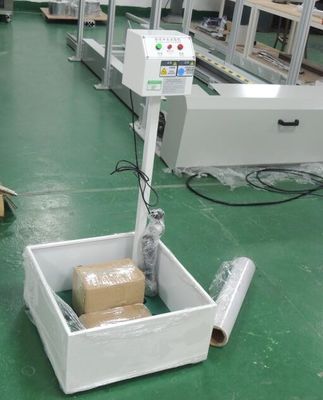

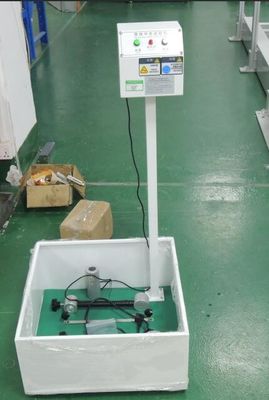

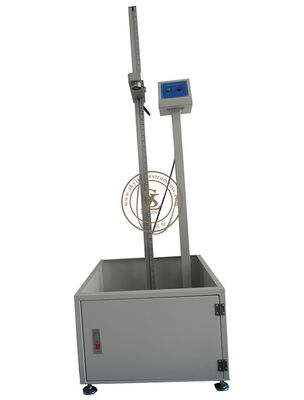

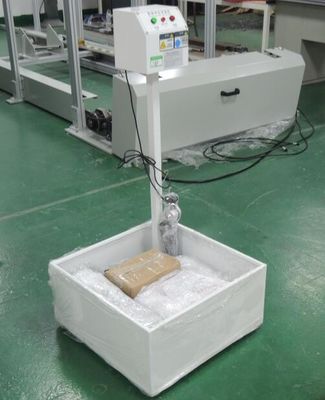

ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass

ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass

    • ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass
    • ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass
    • ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass
    • ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass
    • ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass
    • ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass
  • ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: Calibration certificate
    Model Number: SL-S24

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: carton box
    Delivery Time: 3 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: Steel Ball Dropping Impact Tester Standards: ASTM F963 8.7.4, ISO 8124-1 5.14
    Height: 2m Steel Ball: Diameter 16 Millimeters, Weight 15.8 +0.8/ -0 Grams
    Weight: 20kg Warranty: 18 Months

    ASTM Toys Testing Equipment Toy Steel Ball Dropping Impact Tester



    Product Information

    Steel Ball Dropping Impact Tester is to test the impact endurance of brittle material like Plastic, Ceramic, Acrylic, and glass. To perform impact test for toys that cover the face (like Mask). Comply with ASTM F963 8.7.4, ISO 8124-1 5.14, Drop ball impact testing machines provides a standard steel ball which be adsorbed by magnetic force, and when cut off the power supply to magnetism, the steel ball would free dropping from a certain height to hit the specimen and then consider visually the quality after damage, to determine the grade of its impacting endurance. The weight and dropping height can be changed according to the material of specimen


    Main Technical Parameter

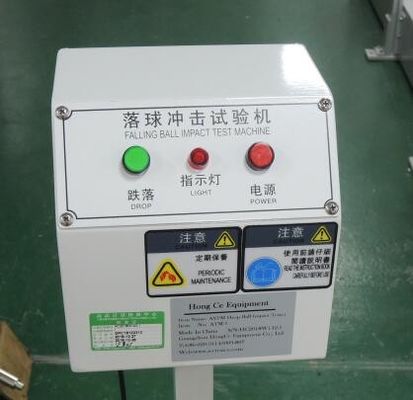

     Top control method  DC electromagnetic control
     Diameter 16 millimeters  weight 15.8 +0.8/ -0 grams
     Highest hight  2m
     Size  50×50×210cm
     Weight of steel ball  357,533,1042,2280g
     Weigh  About30kg
     Power supply  220V/50HZ



    Testing Standards
    ASTM F963 8.7.4, ISO 8124-1 5.14



    ISO 8124-1 5.14 Steel Ball Dropping Impact Tester for Plastic / Ceramic / Acrylic / Glass
