Toys Testing Equipment Figernail Of IEC 60335-1 2010 / Thrust Standard Test Nails

Toys Testing Equipment Figernail Of IEC 60335-1 2010 / Thrust Standard Test Nails

    • Toys Testing Equipment Figernail Of IEC 60335-1 2010 /  Thrust Standard Test Nails
    • Toys Testing Equipment Figernail Of IEC 60335-1 2010 /  Thrust Standard Test Nails
    • Toys Testing Equipment Figernail Of IEC 60335-1 2010 /  Thrust Standard Test Nails
    • Toys Testing Equipment Figernail Of IEC 60335-1 2010 /  Thrust Standard Test Nails
    • Toys Testing Equipment Figernail Of IEC 60335-1 2010 /  Thrust Standard Test Nails
  • Toys Testing Equipment Figernail Of IEC 60335-1 2010 /  Thrust Standard Test Nails

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-P12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: Alu.box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: Figernail Of IEC 60335-1:2010 Standards: IEC60335

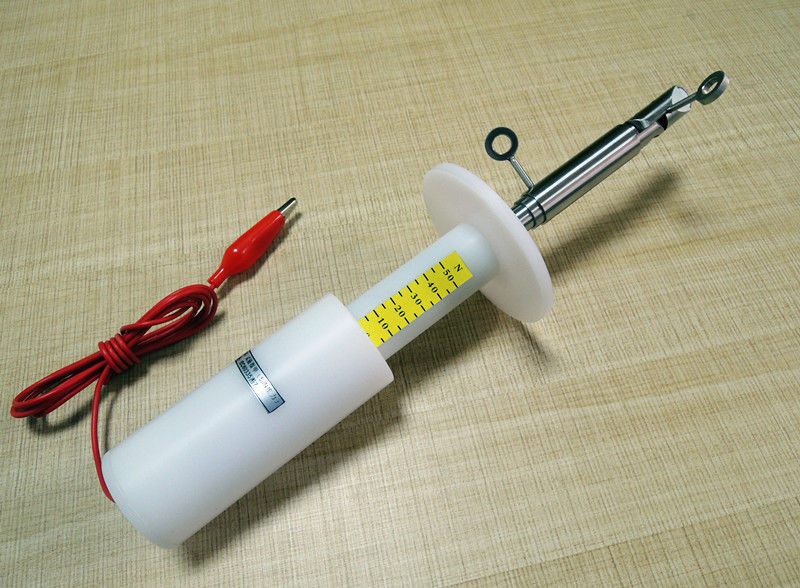

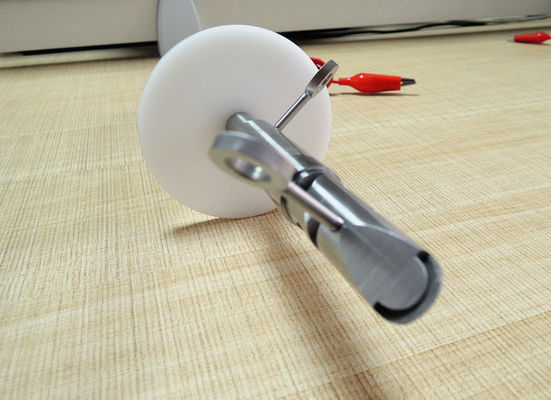

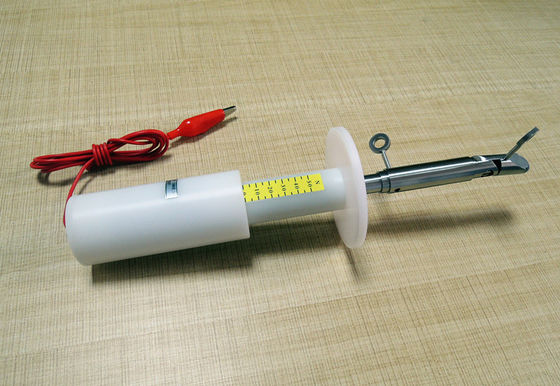

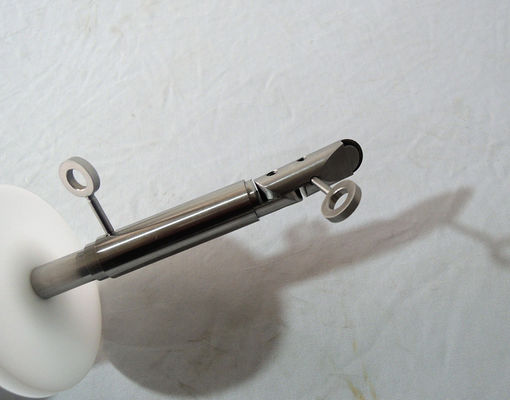

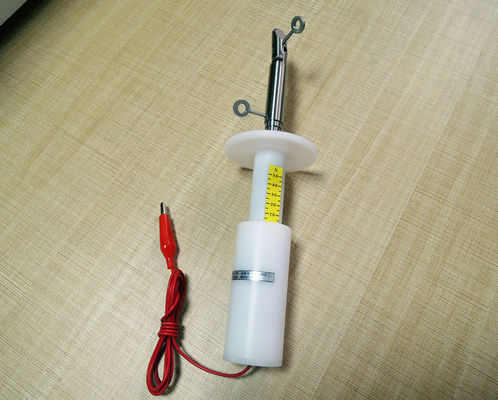

    Figernail of IEC 60335-1:2010/Thrust Standard Test Nails



    Overview

    It is mainly used for the penetration prevention of sharp parts of solid insulation, and for non-detachable parts to prevent contact with live parts, waterproof or contact with moving parts. It is fixed in a reliable manner and should withstand the mechanical stresses that occur in normal use buckles.



    Standard

    According to IEC60335-1 standard.



    Technical parameters of standard test nails
    1. Components: fingertips, middle finger, and three parts
    2. Apply pressure: 10N, 20N, 30N
    3. Reference standard: GB4706.1-2005 Figure 7, IEC60335-1 Figure 7



    Standard test nail use method
    1 The force of the surface pressure of the scratch test is 10 N, and the material of the scratched surface cannot be separated.
    2.1 Use the test finger to insert any gap or joint, apply a 10N side tension vertically, but do not twist and sway, the relevant parts can not fall off or damage.
    2.2 Insert any gap or joint with the test finger and apply a 10N side tension in the direction of component disassembly, but do not twist and sway, and the relevant parts cannot fall off or be damaged.



    Standard Test Nail Precautions

    This product is a precision stainless steel instrument tool. Use it with care and care. Do not use torsion to prevent damage to the nails and to prevent damage to the product during use.

    Toys Testing Equipment Figernail Of IEC 60335-1 2010 /  Thrust Standard Test Nails
