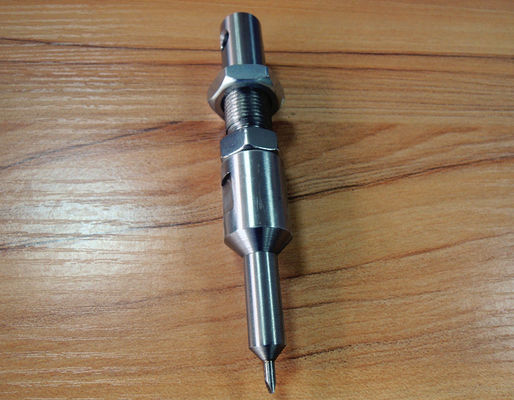

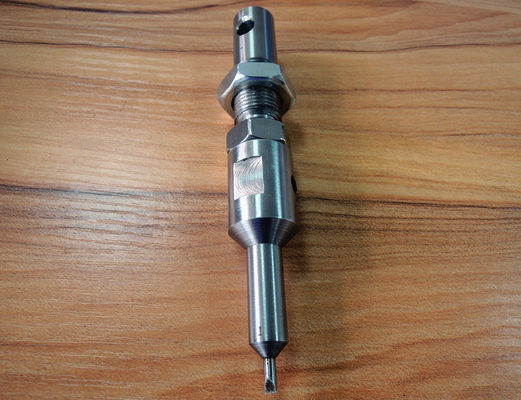

EN1400-2 EN14350-1 Toys Testing Equipment Indentor For Pacifier Testing

EN1400-2 EN14350-1 Toys Testing Equipment Indentor For Pacifier Testing

    • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
    • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
    • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
    • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
  • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: Calibration certificate
    Model Number: SL-EN1400I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: carton box
    Delivery Time: 3 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: Indentor Standards: EN1400-2, EN14350-1, EN14372, EN1400-1
    Material: Alu.alloy Weight: 1kg

    EN1400-2 EN14350-1 EN14372 EN1400-1 Indentor For Pacifier Testing



    Usage

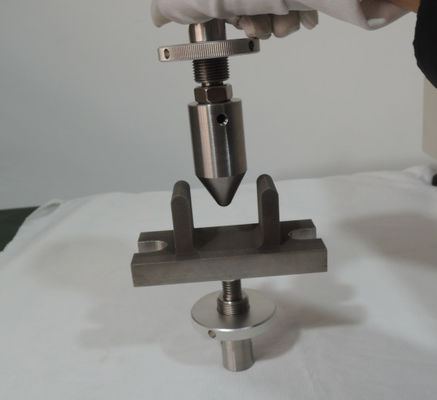

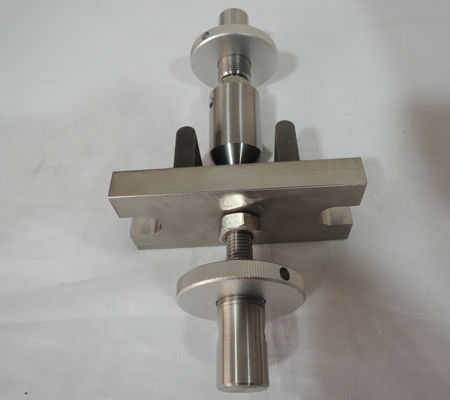

    A range of fixtures for pacifier testing, including acupuncture, bending, tensile testing, etc.



    Standards compliant

    EN1400-2, EN14350-1, EN14372, EN1400-1



    Technical parameters

    The needle part is 0.20±0.01MM on the front and DIN3±0.05MM on the side.

    1. Need to be installed on the tensile machine

    2. The lower nipple fixing fixture can be moved left and right to facilitate testing different parts of the nipple

    3. The lower nipple support plate requires a hardness of 97 IRHDs

    The tip is centered vertically at 15mm to 20mm at the end of the teat, and a pressure of 200±10N is applied at a speed of 10±5mm/min for 1±0.5sec. Check whether the nipple is punctured.



    EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
