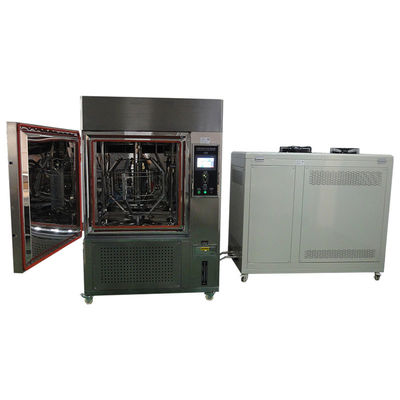

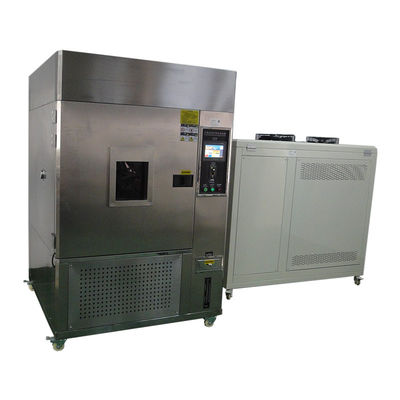

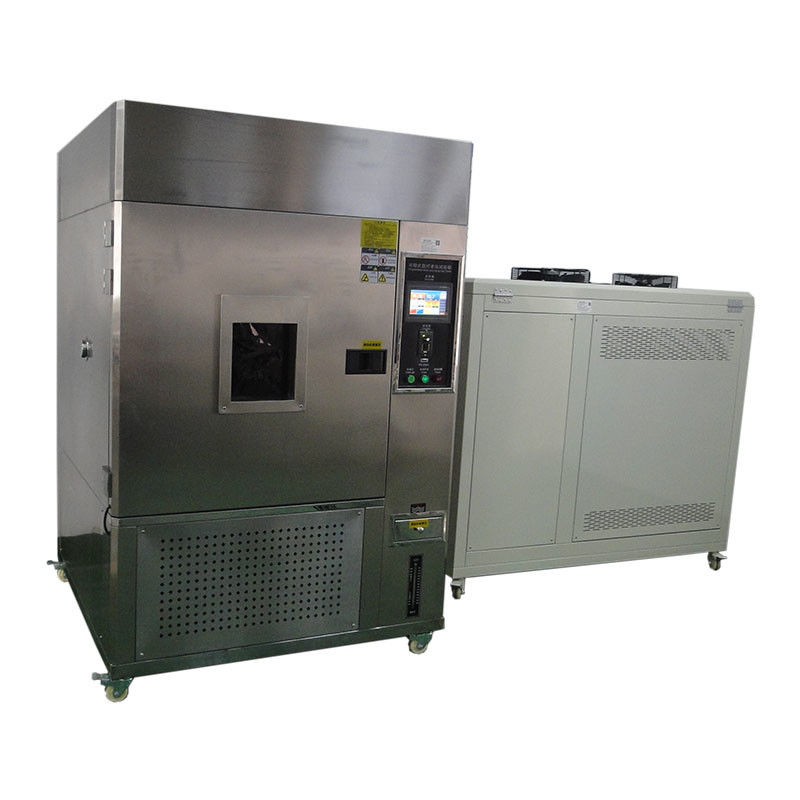

Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m

China Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m supplier
Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m supplier Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m supplier Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m supplier

Large Image :  Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-E07

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Xenon Weathering Test Chamber Xenon Lamp: 3KW
Inner Dimension: 800x800x800 Humid. Range: 65%— 98% R. H
Temp. Range: RT-85º C Wind Speed: 1~1.5m/s

512L Water Cooled Xenon Wethering Testing Chamber with Stainless Steel working chamber



Product introduction

Xenon arc lamp test chamber is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material’s light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum’s Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.



Xenon lamp weathering tester tests the products undergone illumination, rain, condensation, temperature, humidity, wind and any other climatic changes. This tester is mainly for the test of non-ferrous/organic/rubber/plastic and building materials.



Parameters

 Dimensions of the working chamber˄mm)  ˄800× 800×800)(W×D×H)
 Temperature Range  RTć̚+80ć
 Humidity  Range˖Humidity range  light cycle 50% ~ 98% R.H, dark cycle 30% to 98%
 Blackboard Temperature˖Blackboard temperature  63+3ć (deviation ± 3 ° C)
 Temperature fluctuation  <=0.5 ć
 Temperature uniformity  <=2.0 ć
 Humidity fluctuation  + 2% ~ -3% R.H.
 Glass window filter  borosilicate glass
 Xenon light source  water cold xenon arc light source
 Water cold xenon lamp power  6KW, xenon lamp power: 6KW × 1 = 6KW
 Water cold Xenon lamp power˖1pcs Water pressure  138 ~ 344Kpa (20 ~ 50psi); Flow: minimum 0.6L / min. Xenon lamp cooling, spraying, humidification use of water: the requirements of the national analysis laboratory secondary water quality, water, solid impurities less than 1mg / L. Test chamber drain at the bottom of the box at the bottom of the rear. The ambient temperature of 23 ± 2 ć, relative humidity of <80%, not in a corrosive, toxic and harmful environment to install and use. Heater:Stainless steel 316L fin cooling tube electric heate



Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m

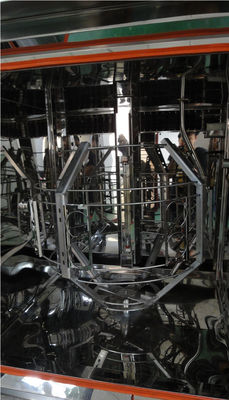

Specimen rack / holder



Features

  • Presetting various specifications, Custom program capability, meet diverse range of standards, including AATCC, ISO, BS, JIS etc;
  • Automatic compensating system (PATENT) control the Xenon Lamp Power;
  • Colorful touch screen, indicate the condition of chamber at real-time, be able to presetting irradiance, temperature (BPT, BST, chamber), humidity, and plot dynamic curve of them. The operator simply selects the required test module and test standards; English user interface, diagram indicate condition of chamber, easy to use;
  • PLC control, powerful program and storage property, save the parameters when interrupt of power supply.
  • Chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration.
  • Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless adjustable.
  • Sample holder/ rack:360 degree rotating, can hold samples of different sizes
  • Xenon Arc Lamp to simulate the best full spectrum sunlight

Water Cooled 512L Xenon Weathering Test Chamber , Environmental Testing Equipment wtih Irradiance of 0.5 W/m
