DIN-53754 Footwear Testing Equipment Digital Display Taber Abrasion Testing Machine

China DIN-53754 Footwear Testing Equipment Digital Display Taber Abrasion Testing Machine supplier
DIN-53754 Footwear Testing Equipment Digital Display Taber Abrasion Testing Machine supplier DIN-53754 Footwear Testing Equipment Digital Display Taber Abrasion Testing Machine supplier

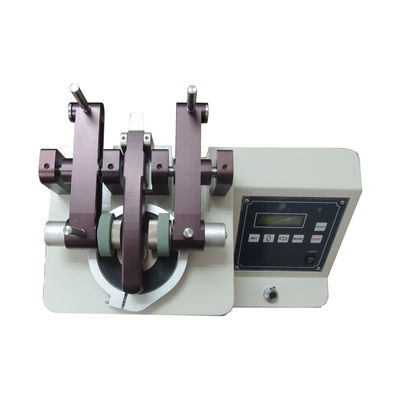

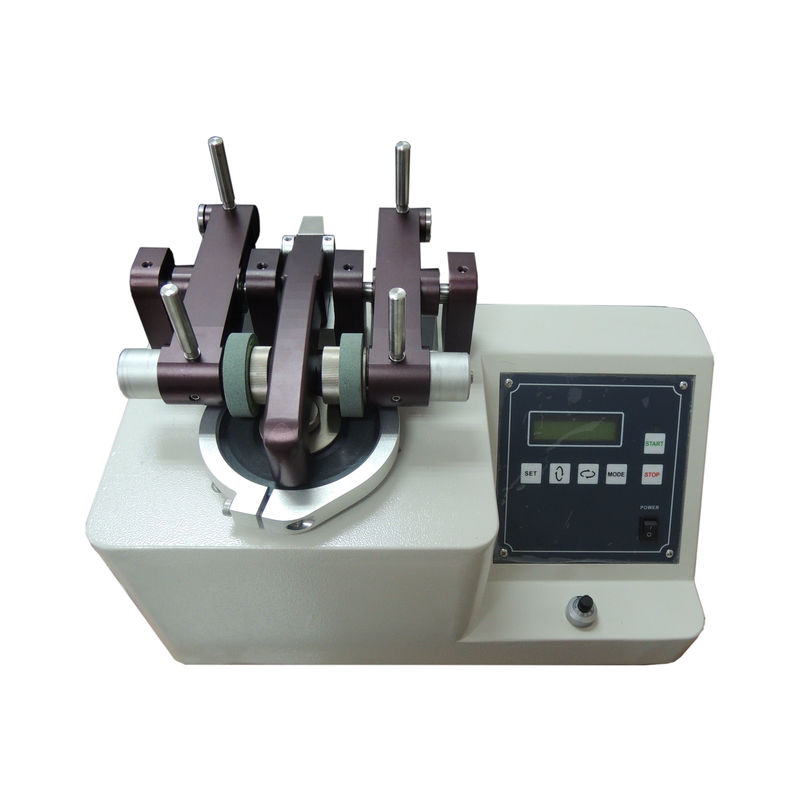

Large Image :  DIN-53754 Footwear Testing Equipment Digital Display Taber Abrasion Testing Machine

Product Details:

Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L02

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Table Abrasion Tester Testing Disk Speed: 0-70 Adjustable
Load: 250g, 500g, 1000g Weight: 30kg
Specimen: 120 × 6.5 × 3mm Standards: BS-5131 SATRA TM20 ISO 19953 QB/T 2863

Footwear Testing Equipment DIN-53754 Digital DisplayTaber Abrasion Tester



Application

This tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous material's, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Applicable industry
It is used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; Commodity inspection, arbitration, and technical supervision departments,
The formula is
abrasive index formula: × 1000
Testing reference
Paint brick plywood plastic
CS10
CS17 CS17 S32
S33 CS17
H18H22


Machine Specification

Specimen 120 × 6.5 × 3mm
Load 250g, 500g, 1000g
Counter 6 digit electronic display, automatic shut down
Testing Disk Speed 0-70 Adjustable
Machine Dimensions 30 × 43 × 30cm
Machine Weight 30kg
Attachment A wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 PCS. Vacuum cleaner 1.
Power AC220V/50Hz



 Abrasion Wheel Diameter 52.4mm
Weights 250g, 750g, 1000g
Gyration Speed 60 ~ 72+/-2rpm
Counter LCD display 0-999999

Standards



DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470
