Lubricating Grease Leakage Measurement Machine

Name: Lubricating Grease Leakage Measurement Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-OA26
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-OA26
MOQ:	1
Price:	Negociate
Supply Ability:	1 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Poly wooden case

Supply Ability:

1 Set/Month

Highlight:

Lubricating grease leakage tester

Grease leakage measurement equipment

Lab grease leakage testing machine

Product Description

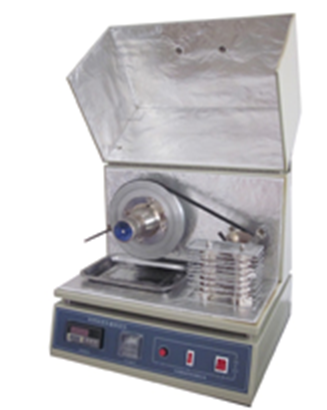

Lubricating Grease Leakage Measurement Machine

The SL-OA26 Grease Leakage Measurement Machine evaluates grease leakage from automobile wheel bearings in accordance with SH/T 0326 standard, designed to distinguish products with significantly different leakage characteristics.

Machine Introduction

The grease leakage tester is designed and manufactured according to SH/T0326 "Determination of grease leakage of automobile wheel bearing". It is suitable for the determination of grease leakage of automobile wheel bearing and serves as the primary instrument for screening and evaluating grease leakage performance.

Technical Specifications

Parameter	Specification
Power Supply	AC220V 50Hz
Temperature Control Range	Room temperature to 200℃
Temperature Control Points	Bath temperature: 113±3℃ Shaft temperature: 104.5±1.5℃
Input Power	2060 W
Heating Power	2000 W
Motor Power	60 W
Shaft Speed	660±30 r/min
Dimensions	500 × 600 × 450 mm

Primary Applications

Automobile wheel bearing grease leakage testing - Measuring grease leakage from wheel bearings under specified test conditions
Grease retention evaluation - Assessing the ability of grease to stay in place under operating conditions
Quality control in grease manufacturing - Verifying leakage specifications of grease products
R&D and formulation development - Developing greases with improved retention and reduced leakage
Automotive lubricant screening - Screening and evaluating grease leakage performance for automotive applications

Frequently Asked Questions

What is this equipment used for?

This instrument measures grease leakage from automobile wheel bearings. It is the primary instrument for screening and evaluating grease leakage performance and is used to distinguish products with significantly different leakage characteristics.

What standards does it comply with?

The instrument is designed and manufactured according to SH/T 0326 "Determination of Grease Leakage of Automobile Wheel Bearing."

What are the temperature control points?

The bath temperature is controlled at 113±3°C and the shaft temperature at 104.5±1.5°C.

What is the shaft speed?

The shaft operates at 660±30 r/min.

What is the input power?

The total input power is 2060W, comprising 2000W heating power and 60W motor power.

What are the dimensions?

The instrument dimensions are 500×600×450mm.
