Electromagnetic Vibration Tester with 60KG Maximum Test Load, 500 × 500 mm Test Table, and 1-200Hz Sweep Frequency

Brand Name:	SKYLINE
Model Number:	SL-VT50
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Maximum Test Load:

60KG

Test Table Size:

500 × 500 Mm

Amplitude:

0-5mm

Sweep Frequency:

1-200Hz

Precision:

1 HZ

Power:

1.6KW,220V 50HZ Or Customized

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

60KG Maximum Test Load Electromagnetic Vibration Tester

500 × 500 mm Test Table Triaxial Vibration Tester

1-200Hz Sweep Frequency Vibration Simulation Tester

Product Description

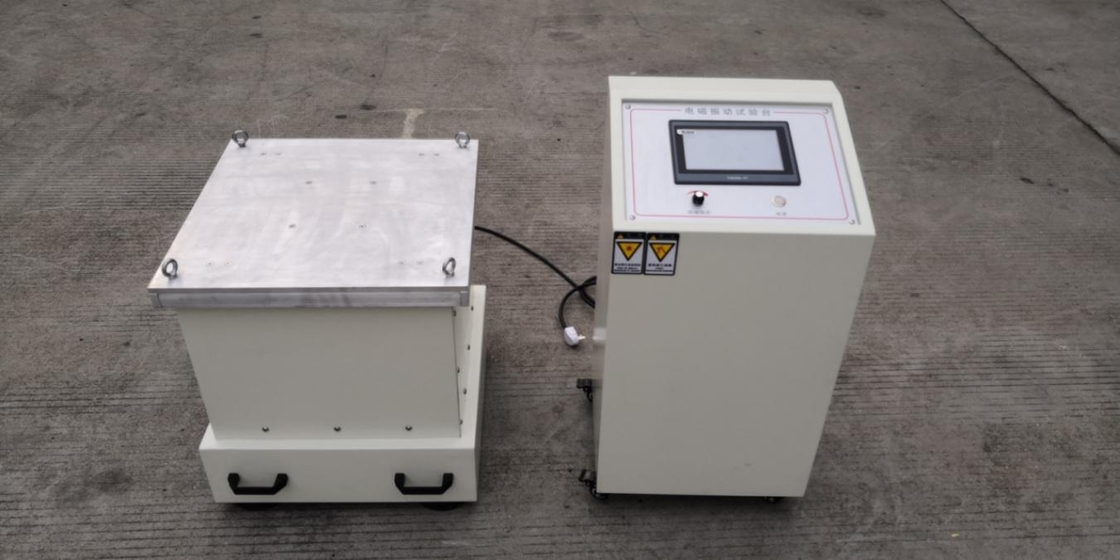

X,Y,Z Direction Vibration Triaxial Simulation Vibration Tester

The electromagnetic vibration test machine is engineered for comprehensive testing across multiple industries including defense, aviation, communications, electronics, automotive, and home appliances. This advanced equipment facilitates early fault detection, simulates real-world operating conditions for product assessment, and performs structural strength testing with exceptional reliability and effectiveness.

Advanced Testing Capabilities

The system supports multiple testing modes including sine wave, frequency modulation, frequency sweep, programmable sequences, frequency doubling, logarithmic functions, and precise time control operations.

Key Features & Benefits

Advanced simple operation technology with easy switching between fixed frequency and sweep frequency modes
Integrated time timing and countdown display functionality
Touch controller interface for simplified, convenient operation
Real-time synchronous display of control parameters without manual intervention
Vibration avoidance base design for easy installation and smooth operation without anchor screws
Built-in amplitude prediction program with simplified amplitude modulation
Four-point synchronous excitation for uniform table vibration distribution
Stepless amplitude adjustment with fixed frequency and sweep frequency operation modes
Enhanced anti-interference circuitry for stable operation in strong electromagnetic fields
Real-time curve display function for monitoring frequency waveform changes

Technical Specifications

Parameter	Specification
Maximum Test Load	0-60 kg
Vibration Direction	Vertical + Horizontal + Longitudinal
Test Table Size	500 × 500 mm
Amplitude	0-5mm (variable with frequency)
Sweep Frequency Range	1-200Hz (programmable, true bidirectional frequency sweep)
Maximum Acceleration	10G (variable with frequency)
Functional Capabilities	Frequency modulation, frequency sweeping, and time control
Frequency Precision	1Hz display resolution, 1Hz accuracy
Vibration Waveform	Sine wave
Time Control	Programmable time settings (in seconds)
Power Consumption	1.6KW
Power Supply	220V 50HZ or Customized

This triaxial vibration tester provides comprehensive simulation capabilities for rigorous product testing and validation across multiple industries, ensuring reliability and performance under various operational conditions.
