ASTM D3574 Foam Ball Rebound Tester Machine Sponge Elasticitye&Rebound Rate Tester

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-F001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Contact Now

Detailed Product Description

Drop Height:	460mm Or 500mm	Standard Sample Size:	100 Mm (L) × 100 Mm (W) × 50 Mm (H)
Display:	LCD Touch Screen	Accuracy:	<1.5%
Printer:	Yes
Highlight:	Rebound Rate Foam Ball Rebound Tester , ASTM D3574 Foam Ball Rebound Tester , Sponge Elasticitye Foam Ball Rebound Tester

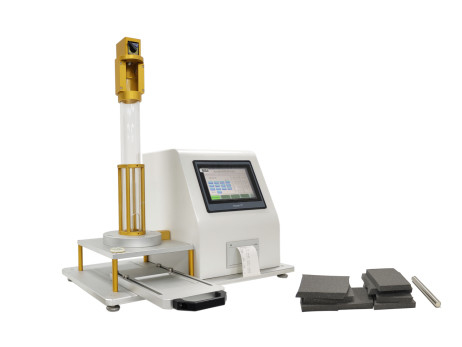

Machine Introduction

This machine is designed and manufactured according to ASTM D3574, ISO 8307, GB/T6670-97. It is suitable for determining the falling ball resilience of soft polyurethane foams. The instrument calculates the maximum rebound height of the steel ball and the percentage of the falling height of the steel ball by the steel ball with a given diameter and quality falling freely on the foam sample at a specified height, and the rebound rate represents the resilience of the foam. The machine uses microprocessor to control, touch screen Chinese display, and can print test data. The machine has the characteristics of safety, reliability and high measurement accuracy.

Technical Parameter

Steel ball drop distance	GB 460±0.5%mm or ASTM/ISO 500±0.5%mm
Steel ball diameter	￠16±0.05 mm
Steel ball weight	mass 16.8g ± 1.5 g
Accuracy	<1.5%
Display	LCD Touch Screen interface
Standard sample size	100mm(L)100 mm(W)50mm(H)
Printer	YES
Test results	Output by built-in printer
Test Data	Automatic calculation of average rebound rate
Test results	Output by built-in printer

Mian configuration

A set of mainframes (including release mechanism, height adjustment mechanism)

A set of optical fiber distance measuring sensors,

A set of control boxes (LCD touch screen control),

A steel ball,and a magnetic bar
