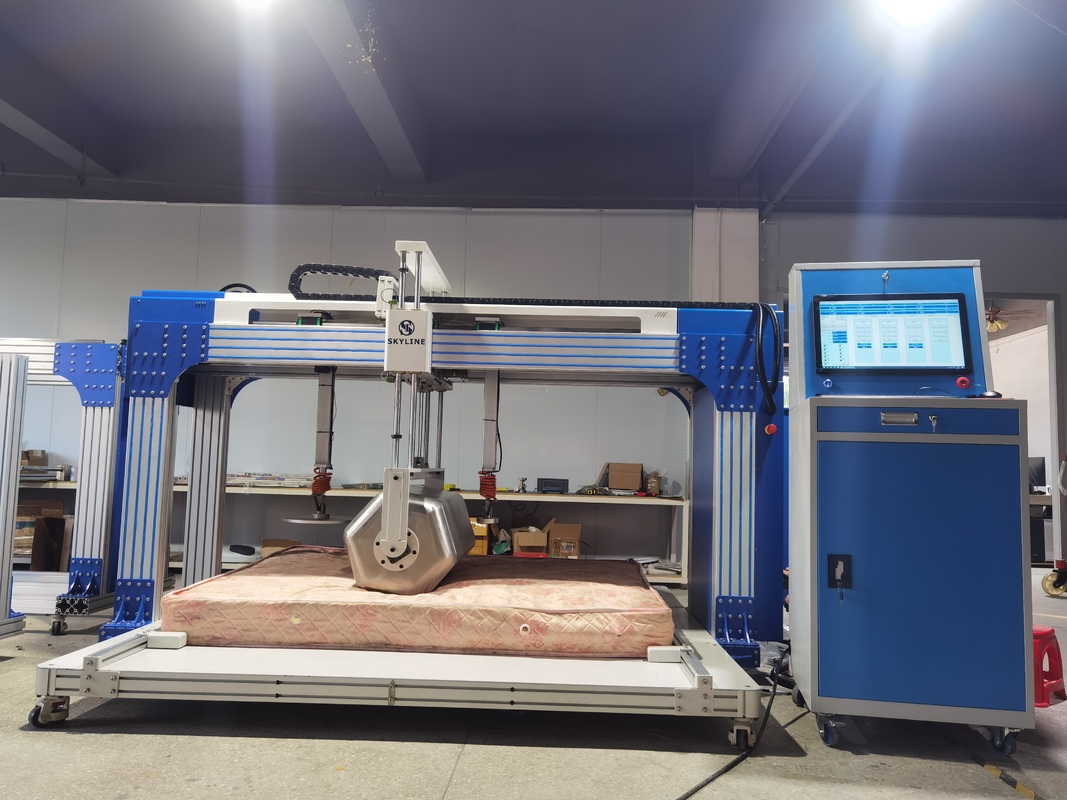

Product Information of Mattress Testing Machine
This machine is used for testing the hardness of spring mattress and evaluating the hardness level.
It also can be used for durability test for the surface of mattress and Roller durability test. Evaluate the test data before and after the test.
Record the curve of loading process and evaluate the value of hardness according to relevant test data.
It is made of aluminum, generous and beautiful.
Control system adopts special high precision and high intelligence ARAM controller.
The software interface is clear and easy to be operated.
This machine is meet the reguirements of both ASTM F1566 and EN1957 standards, which own below mainly functions:
1. Rolling Durability Test (ASTM F1566 or EN 1957 test standard optional)
2. Mattress Hardness Test (ASTM F1566 or EN 1957 test standard optional)
3. Height Lost Test (EN 1957 Optional)
4. Mattress Edge Test (EN 1725 Optional)
Product Information of Packing Detail
Estimated Packaging Dimension: 3510*1220*1900mm
Estimated Gross Weight:1100kg
HS Code: 9024800000
Testing Standards of Mattress Testing Machine
ASTM F1566(109kg,ASTM Hexagonal Barrel:100000 cycles)
EN 1957(140kg,EN Round Barrel:100 pre-roll and 29900 cycles)
Feature
1. The whole machine frame made of high quality aluminum, with smart and elegant shape
2. Delta brand PLC and Servo Motors
3. Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor
4. Machine configuration alarm device, indicating the safe operation
5. Electric lifts the Roller, easy to operate.
6. PC Control and touch screen
7. Automatically stops after preset cycles completed
8. over moving limit protection

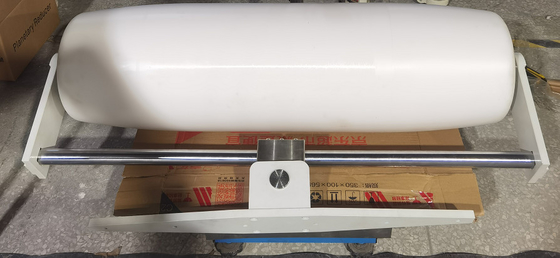

9. Stainless steel roller reduces wear and increase of service life.
