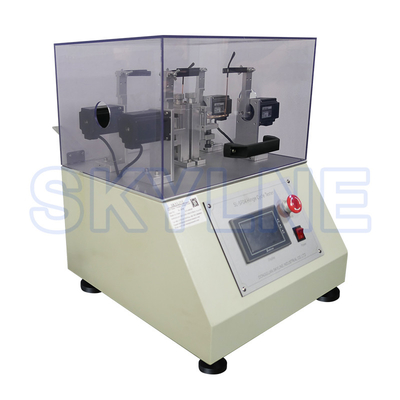

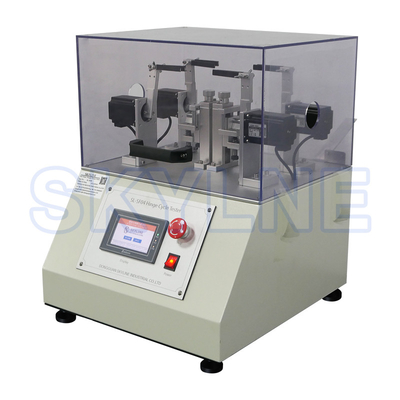

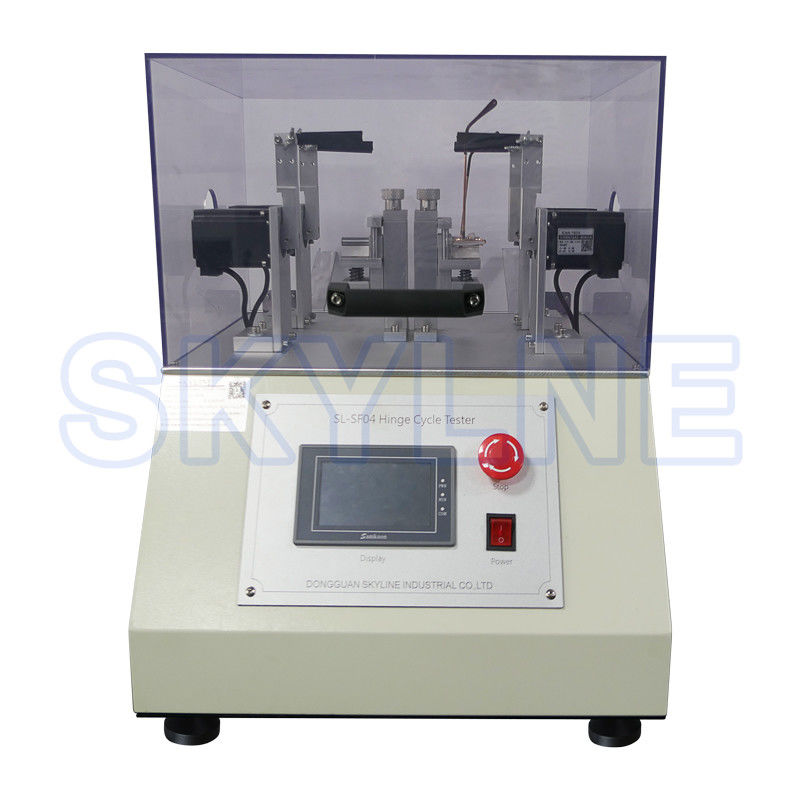

Spectacle Frame Tester PLC Control Hinge Cycle Tester US Voltage With Speed 0-120 Times / Minute

Spectacle Frame Tester PLC Control Hinge Cycle Tester US Voltage With Speed 0-120 Times / Minute

Brand Name:	SKYLINE
Model Number:	SL-SF04
MOQ:	1 unit
Price:	neogitable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SKYLINE:

Hinge Cycle Tester

Control Method:

PLC

Test Station:

2 Station

Speed:

0-120 Times / Minute

Count Setting:

0-999, 999, 999, 99

Weight:

32kg

Packaging Details:

Plywood case

Supply Ability:

1 unit / month

Highlight:

physical testing equipment

brake testing equipment

Product Description

Hinge Cycle Tester(US Voltage)

Production Introduction

Test standards: GB13511-1999, GB / T14214-1998, QB2659-2004, QB2457-1999, industry standards, etc.

Test purpose: To determine the spring hinge of the frame has a certain durability, can withstand a certain number of opening and closing activities and maintain the original state, the purpose is to detect the change of the spring force of the spring hinge.

Technical parameters

(1) Control method: PLC

(2) Test station:2 station

(3) Count setting: 0-999, 999, 999, 99. Touch screen setting

(4) Angle setting:

Front and rear angle of each group can be set

Front angle -180--180 degrees

Back angle -180 ---- 180 degrees

(5) Speed can be set: 0-120 times / minute

(6) Swing pause time; 0-10 seconds

(7) Dimensions: 45 × 47 × 56 CM (length × width × height)

(8) Weight: 32 Kg

PLC Control Hinge Cycle Tester.pdf

Company Profile.pdf

Please review video of the Hinge Cycle Tester operation as below link:

https://youtu.be/ur8R2efF0j4
