Motor Horizontal Brake Performance Tester For Testing The Motor Brake Performance Of Electric Ride-On Toys

Name: Motor Horizontal Brake Performance Tester For Testing The Motor Brake Performance Of Electric Ride-On Toys
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S50-2
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-S50-2
MOQ:	1 UNIT
Price:	Negoitable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SKYLINE:

Motor Horizontal Brake Performance Tester

Constant Speed:

(2 ± 0,2) M/s

Standard:

EN 71-1

Packaging Details:

plywood case

Supply Ability:

1 unit / month

Highlight:

Horizontal stability test chamber

2m/s swing durability tester

2m/s stability test chamber

Product Description

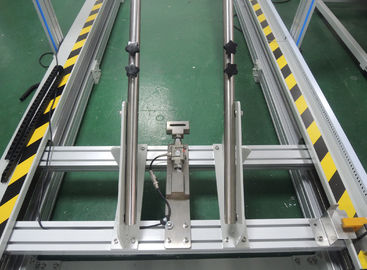

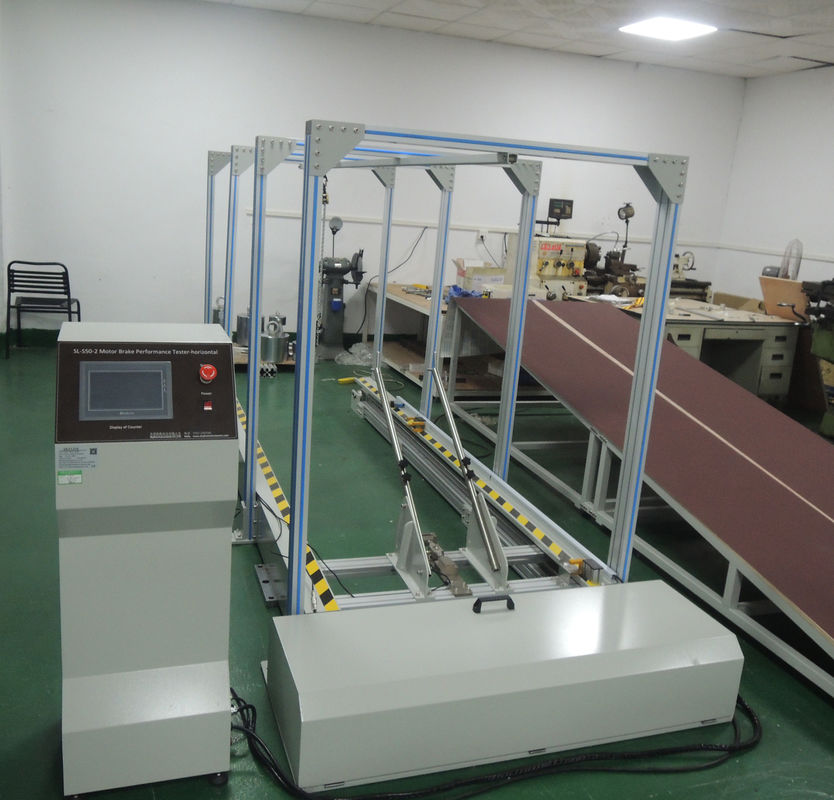

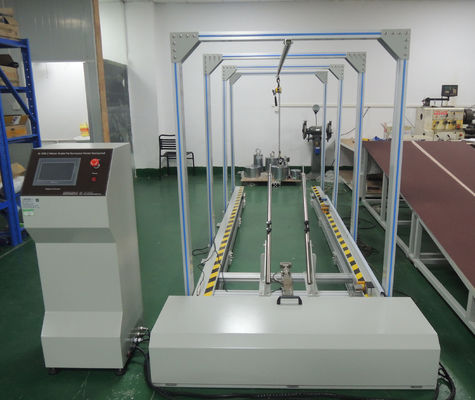

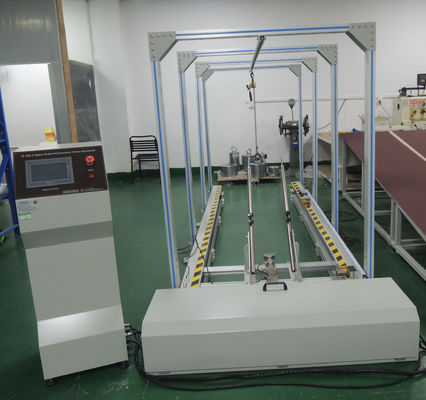

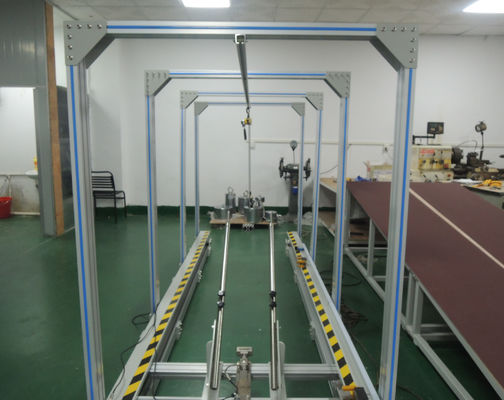

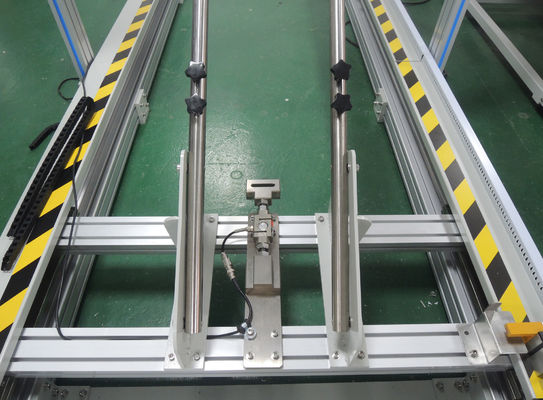

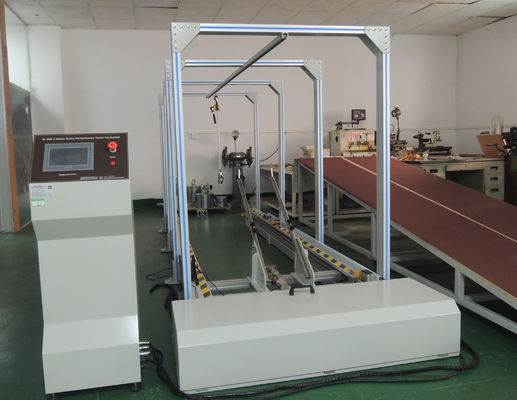

Motor Horizontal Brake Performance Tester

Product information

Motor brake performance – Horizontal test

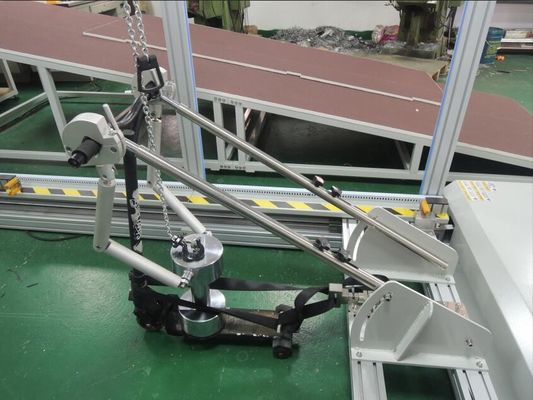

Load the toy as in 8.21 (static strength). Measure the force required to pull the toy on a horizontal plane
covered with a surface of abrasive paper (aluminium oxide P60) at a constant speed of (2 ± 0,2) m/s.

Applications
This Brake Performance Tester is mainly used to test the motor brake performance of electric ride-on toys.

Standards
EN 71-1

Principle

Load the toy a suitable static strength load. Measuring the force required to pull the toy on a horizontal plane covered with a surface of abrasive paper (aluminium oxide P60) at a constant speed of (2 ± 0,2) m/s. The motor shall be considered to supply sufficient braking if:
FT1 ≥ (M + 25) x 1.7 or FT2 ≥ (M + 50) x 1.7
where
FT1 is the maximum pull force in Newtons for a toy intended for children under 36 months;
FT2 is the maximum pull force in Newtons for a toy intended for children of 36 months and over;
M is the mass of the toy in kilograms.

Motor Horizontal Brake Performance Tester For Testing The Motor Brake Performance Of Electric Ride-On Toys 0
