Innerspring Box Spring Testing Equipment Mattress Rollator Testing Machine ASTM F1566

Name: Innerspring Box Spring Testing Equipment Mattress Rollator Testing Machine ASTM F1566
Brand: SKYLINE
SKU: SL-T07
Rating: 4.8 (199 reviews)

Large Image : Innerspring Box Spring Testing Equipment Mattress Rollator Testing Machine ASTM F1566

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	Calibration Certificate
Model Number:	SL-T07

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	Plywood case
Delivery Time:	30 working days
Payment Terms:	Western Union, T/T, MoneyGram
Supply Ability:	1 pcs/ month

Contact Now

Detailed Product Description

Aluminum:	High Quality Industrial Aluminum Production Frame	Controller:	PLC+ Touch Screen
Motor:	Sevro Actuator	Standard:	ASTM F1566, EN1957
Wooden Hex Barrel Weight:	109KG	Cylinder Weight:	140 KG.
High Light:	mattress testing equipment , durability testing machine , Innerspring Box Spring Testing Equipment

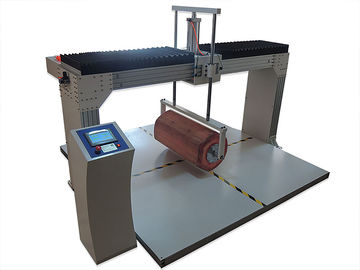

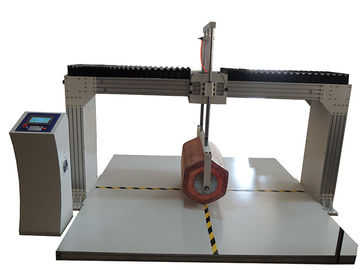

ASTM F1566 Innerspring Box spring PLC Controlled Mattress Rollator Testing Machine

Product information
To determine the durability of any type of mattress and boxspring unit (regardless

of the materials) by simulating long term use condition.

The Rollator type mattress durability tester determines the quality of support of mattress and box spring unit after repeatedly impacts and cyclic movement applied on the surface, Using the cylinder or hexagon to simulate the body of human continuously roll on the mattress.

Technical parameters

Hexagonal wood barrel (ASTM F1566)	109kg, Length 36±3in(915±75mm)
Maximum size of mattress	2.2m×2.5m
Test speed	0-20r/min
Control method	PLC+ touch screen
Dimension	2500mm×2800mm×2200mm
Power	AC220V±10%, 50/60Hz, single phase
Accessory	One Hexagonal barrel
According to different mattress to adjust the rolling stroke (adjust the limit switch position)
Low coefficient of friction guide, ensure full drum weight on the mattress.
LCD Touch Screen display provides easy control and setting, also with USB port to output test results.

Testing Standards
ASTM F1566

Features

PLC controller with large colorful touch panel
Motor: servo motor, precise force control
Test procedure can be programmed on the panel
Automatically stops after preset cycles completed
Emergency stop buttons
Over moving limit protection
Wooden roller softly contacts the surface of the mattress

The mattress durability tester is used for

Boxspring Mattresses
Innerspring Mattresses
Polyurethane Mattresses
