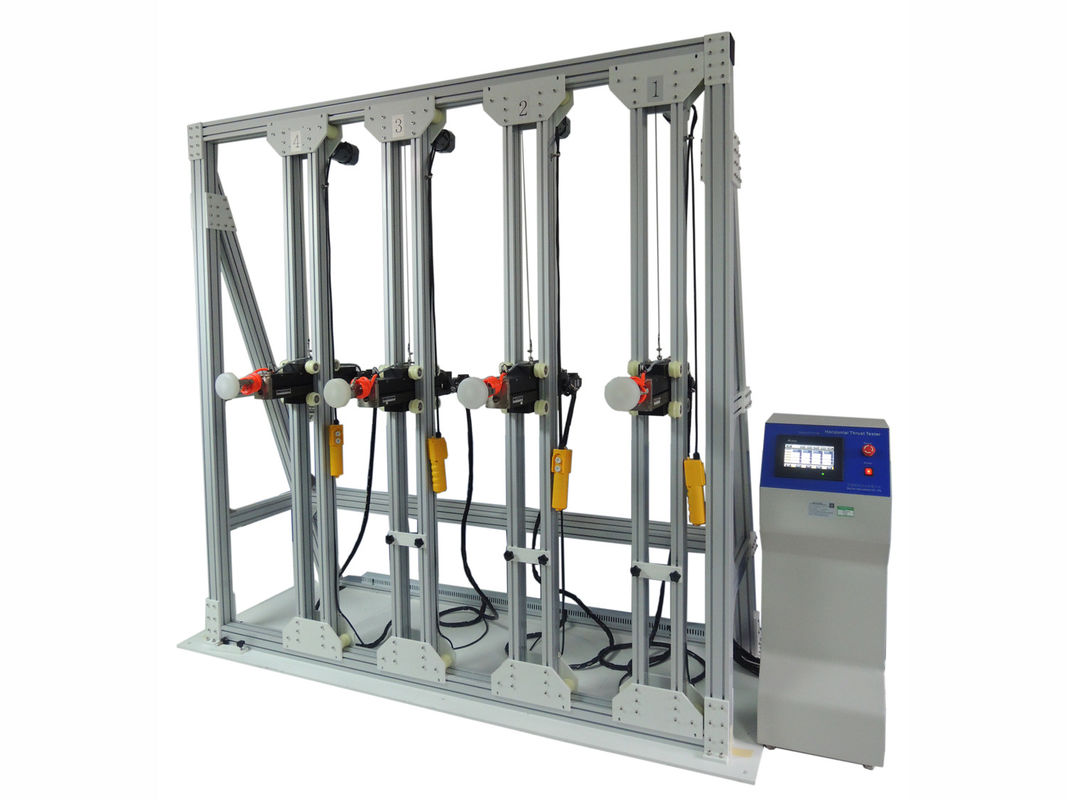

EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings / Slide Outdoor Toys

EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings / Slide Outdoor Toys
EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings / Slide Outdoor Toys

Large Image :  EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings / Slide Outdoor Toys

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S158

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 35 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Detailed Product Description
SKYLINE: Horizontal Thrust Tester For Swings And Slide Standard: ISO8124-4 6.1.2/ 6.1.4
Motor: 4 Servo Actuators Direction: Horizontal
Loading Point Height: 30-180cm Material: Alu 80*80 Frame
High Light:

swing durability tester

,

swings testing equipment

,

EN71-8 Horizontal Thrust Tester

EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide



A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect.



Main parameters

 Load cell capacity  0-2500N
 Accuracy  +/-0.5%
 Direction  Horizontal
 No of loading advice  4 in total
 Loading Point height  30-180cm
 Motor   4 servo actuators
 Controller  PLC+ Touch screen
 Test frame  Alu 80*80 cm frame


Standards
ISO8124-4 6.1.2/ 6.1.4



Procedure

Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal surface.

For a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not prevent the toy from overturning.
Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with the anchors fixed to the standing surface in accordance with the manufacturer's instructions.


On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the swinging direction. Where a swing element has multiple suspension points, distribute the load equally between the points.
Forces on multiple suspension points shall be applied in the same direction simultaneously.
Observe whether the toy tips over



Horizontal Thrust Tester For Swings And Slide.pdf
