Products

Home / Products / Fire Testing Equipment /

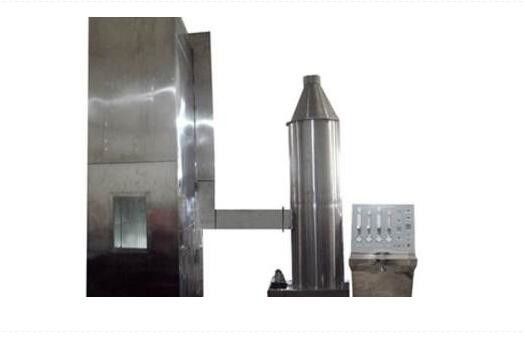

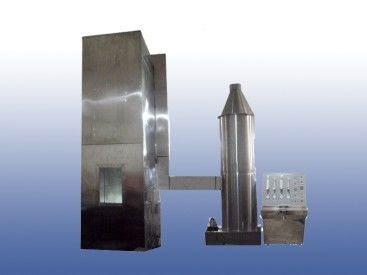

Fire Testing Equipment Wire & Cable Bundle Flaming Tester Ladder Type IEC60332-3-10:2000

Name: Fire Testing Equipment Wire & Cable Bundle Flaming Tester Ladder Type IEC60332-3-10:2000
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-7603S
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-7603S
MOQ:	1 unit
Price:	negotiated
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SKYLINE:

Bundle Flaming Tester

Burning Box Size:

W1000*D2000*H4000mm

Burner:

20.5±0.5kW

Standards:

IEC60332-3-10:2000

Packaging Details:

plywood case

Supply Ability:

1 unit/ month

Highlight:

flammability test apparatus

flammability testing labs

Product Description

Wire & Cable Bundle Flaming Tester Ladder Type GB18380.31:2008, IEC60332-3-10:2000

Application

Apply to evaluate suppression ability of spread of fire for bundles installed wires and cables ,under specified conditions.

Standard

According to IEC60332-3-10:2000,and GA306.1-2007.

Main components

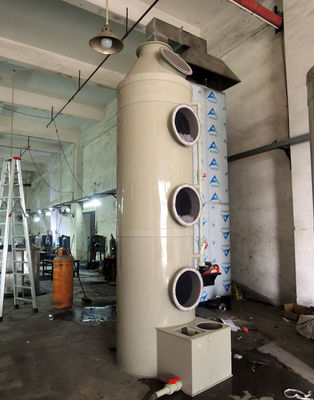

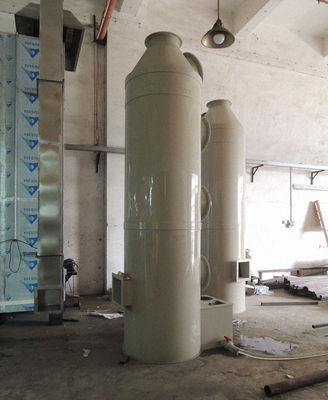

Testing chamber, electric control system, air source, ignition source flew control system (propane gas and air compressed gas), steel elevator, Fire extinguishing devices, emissions purification equipment (user option).

Main parameters

Burning box size	W1000D2000H4000mm
Entrance air flow(speed)	5000±500L/min
Burning ladder frame	W500mmH3500mm and W800mmH3500mm, With automatic up and down device
Fuel gas	Nominal purity 95% technical propane
Burner	20.5±0.5kW belt type
Testing environment	Outer wing speed≤8m/s or temperature of inner testing wall during 5℃~40℃
Burning timer	The time is applying flame to specimen continuously, and range is 0.1-999.9min setting and displaying continuously
Sustained burning timer	The time is after stop to supply the burner gas and the test sample still flaming or lighting, and the range is 0.1-999.9min timing continuously
Area flow-meter	1～100 L/min Qty.: 2pcs
Gas flow-meter	1～50 L/min, Qty. :2pcs

Fire Testing Equipment Wire & Cable Bundle Flaming Tester Ladder Type IEC60332-3-10:2000 0
