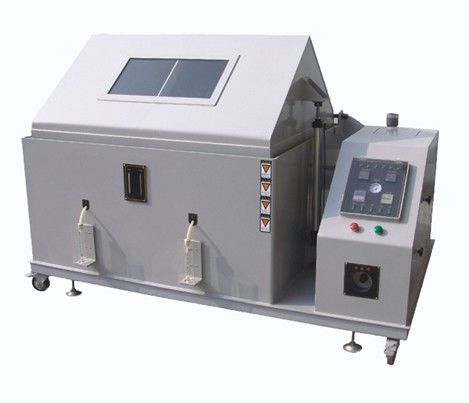

600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test

600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test

    • 600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test
    • 600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test
    • 600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test
    • 600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test
  • 600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE, calibration certificate
    Model Number: SL-E02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Salt Fog Tester Volume: 600L
    Material: PVC Sheet, Thickness 5 Mm Standard: CNS3627, 3885, 4159, 7669, 8886, JIS Do201, H8502, H8610, K5400, Z2371, ISO3768, 3769, 3770, 9227, ASTM B117, B268
    Saturated Air Drums: 47℃±1℃ Material For Saturated Air Barrel: SUS #304 Stainless Steel Barrel High Pressure Barrel

    600L PVC Salt Fog Corrsion Test Chamber Environmental Test Chamber



    Application

    Salt spray test machine is for a variety of materials surface treatment, including coatings, electroplating, organic and inorganic film, anode treatment, anti-rust oil and other anti-corrosion treatment to test its corrosion resistance, thus establishing the quality of the product.

    Technical parameters
     Internal size  1200 × 1000 × 500 (L × W × H) mm
     External dimensions  1900 × 1300 × 1400 (L × W × H) mm
     Laboratory temperature  NSS ACSS 35 ° C ± 1 ° C / CASS 50 ° C ± 1 ° C
     Pressure tank temperature  NSS ACSS 47 ° C ± 1 ° C / CASS 63 ° C ± 1 ° C
     Laboratory volume  600L
     Salt tank capacity  25L
     Compressed air pressure  1.00 ± 0.01kgf / cm2
     The spray volume  1.0-2.0ml / 80cm2.h
     Laboratory relative humidity  85% or more

    Features
    1. Imported gray P.V.C board system, special treatment corrosion resistance. Plastic V-shaped frame and stainless steel tube corner objects, to ensure that the sample into a 30-degree angle, four-wheel glide, can push to go.
    2. Fine workmanship, beautiful appearance, high transparency, pneumatic open cover.
    3. With automatic / manual water system, with water level is insufficient when the automatic / manual replenishment function. The experiment is not interrupted to meet the diverse requirements of the guests. (Automatic replenishment only need to access the water pipe can be)
    4. Nozzle: spray tower with cone-shaped disperser, with a guide fog, adjust the amount of fog, and uniform fog and other functions.
    5. With high-precision multi-function timer, the test time can be set to multi-functional. With power failure memory function, call back to power before the time to continue to work until the completion of the required time to avoid duplication of the experiment after power failure.
    6. Salt spray experiment using steam direct heating method, heating speed, temperature distribution, reduce the standby time.
    7. Two-button automatic operation. With full detection fault early warning system. A fault can be turned on and the alarm is displayed
    8. Use built-in fog collection tube two. Than the traditional external type compared to more difficult to bad.
    9. With overload short circuit protection. To prevent the occurrence of abnormal damage to the instrument and the instrument internal electronic control accessories.
    10. Inside and outside the box to connect the sealing groove, the use of water to prevent salt spray leakage.
    11. Import temperature controller using digital display, PID control, error ± 0.1 ℃.
    12. Temperature range: 1: Laboratory temperature: 35 ℃ - Pressure tank temperature: 50 ℃ (can be arbitrarily set)
    2: laboratory temperature: 47 ℃ - pressure tank temperature: 63 ℃ (can be arbitrarily set)
    13. Reagent bottle with hidden with water level through the window, easy to clean, easy to rupture.
    14. Heating rate: 1: laboratory, room temperature --- → 35 ℃ about 35 minutes
    2: pressure tank, room temperature --- → 47 ℃ about 15 minutes
    15. Temperature accuracy: ± 1 ℃
    16 Applicable international standards: RELATEU STANDARDS CNS 3627,3885,4159,7669,8866; JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO3768, 3769, 3770; ASTM B-117, ASTM B-268 B-268, GJB150.


    600L PVC Salt Spray Test Machine , Corrosion Test Chamber For Salt Fog Test
