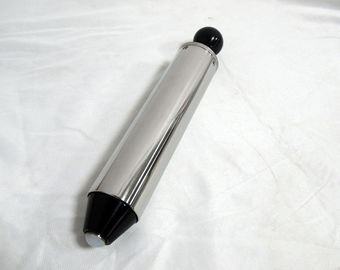

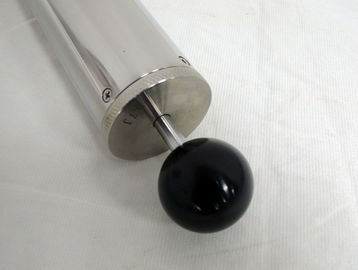

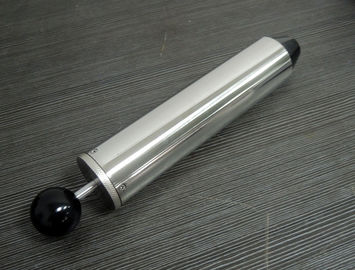

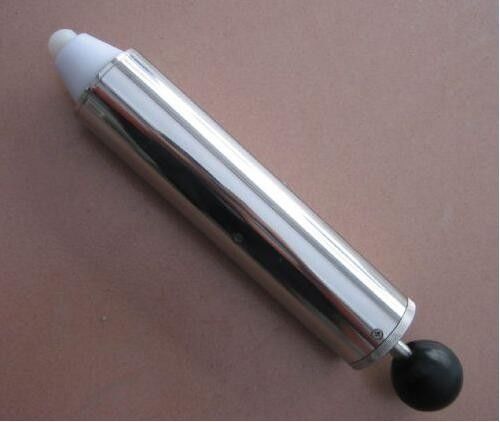

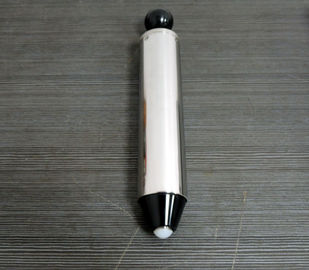

Household Electronic Testing Equipment , 0.5 J Single Energy Spring Impact Test Hammer

Household Electronic Testing Equipment , 0.5 J Single Energy Spring Impact Test Hammer

    • Household Electronic Testing  Equipment , 0.5 J Single Energy Spring Impact Test Hammer
    • Household Electronic Testing  Equipment , 0.5 J Single Energy Spring Impact Test Hammer
    • Household Electronic Testing  Equipment , 0.5 J Single Energy Spring Impact Test Hammer
    • Household Electronic Testing  Equipment , 0.5 J Single Energy Spring Impact Test Hammer
    • Household Electronic Testing  Equipment , 0.5 J Single Energy Spring Impact Test Hammer
  • Household Electronic Testing  Equipment , 0.5 J Single Energy Spring Impact Test Hammer

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: Calibration Certificate
    Model Number: SL-SE02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 5 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Spring Impact Test Hammer Standards: IEC60068-2-75 IEC884 And UL1244
    Weight: 1250g Length: 211mm
    Hammer Radius: 10mm Hammer Weight: 60g

    Household Electronic Testing Equipment , 0.5 J Single Energy Spring Impact Test Hammer



    Introduction

    Spring hammer impact tester is used to check the durability of enclosures for electrical appliances of other electronic products. If damage occurs from the Impact Hammer test .Accessibility probes can be used to measure the extent or severity of the damage. The Impact Hammer simulates the mechanical impact to which electrical equipment may be subjected. , impact hammer test,


    Applications
    This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



    Technical parameters

     Type
     Impact  Energy(J)
     Tolerance Mistake
     Spring Impact Energy

     0.14
     0.014
     Spring Impact Energy



     0.20
     0.02
     Spring Impact Energy
     0.35
     0.03
     Spring Impact Energy
     0.50
     0.04
     Spring Impact Energy
     0.70
     0.05
     Spring Impact Energy
     1.00
     0.05
     Spring Impact Energy
     2.00
     0.10
     Universal Energy
     0.14
     1.00

    Specifications
     Length
     211mm
     Hammer Weight
     60g
     Weight
     1250g
     Hammer radius
    10mm
     OD
     50 mm
     The release force of impact



     <10N
     Impact Components
     Including the hit ball handle the hammer,weight 250g
