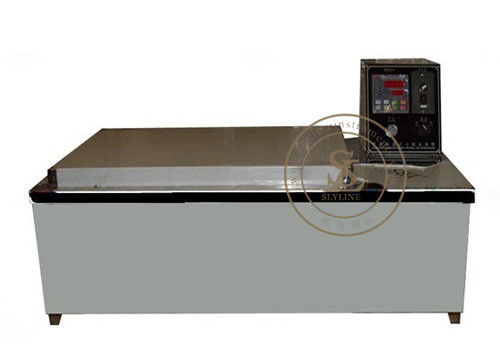

Durable Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine

Durable Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine

    • Durable Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine
    • Durable Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine
  • Durable Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: Calibration certificate
    Model Number: SL-FD03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: Carton box
    Delivery Time: 7 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 10 unit / month
    Contact Now
    Detailed Product Description
    SKYLINE: Oscillation Dyeing Machine Material: Stainless Steel SUS304 Sheet
    Temperature: Maximum Temperature Of 100 ℃ Shake Speed: 0-200 Cycle /min
    Power: AC220V, 50HZ Weight: 50kg

    Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine



    This machine is ayeing trial machine that is extremely convenient for normal temperature dyeing.Besides,

    neutral,alkaki and other additives can be added during the dyeing process.

    Certainly,this machine is also applicable for common bath cotton,soap washing and bleaching experiment.



    Parameters



    1. The whole machine is made of high quality stainless steel 304 sheet.
    2. Equipped with precision heating system, PT-100 thermocouple with programmable temperature control computer (with heating rate).
    3. Medium for the water, the maximum temperature of 99 ℃. Bath ratio 1: 5-1 ︰ 20.
    4. Equipped with Taiwan imported motor and governor. Power AS-12 cup is 40W, AS-24 is 60W.
    5. Stainless steel heating tube, power: AS-12 cup for the 3KW, AS-24 for the 6KW.
    6. Card cup for the cup or spring structure. 12 or 24 250 ° Glass Triangle Beakers are placed arbitrarily.
    7. Also available for 500 triangular beaker, AS-12 can be placed 6, AS-24 can be placed 15.
    8. Oscillation speed: 50-200 round trip / min, oscillation distance 36 mm.
    9. Power supply specifications: AC220V, 50HZ.
    10. 12 cup Dimensions: Front: 880 mm, side: 420 mm, high: 330 mm. Weight is 30 kg
    11. 24 cup Dimensions: Front: 1030 mm, side: 560 mm, high: 330 mm. Weight is 50 kg



     MAX.TEMP  100
     Quantity of Cup  12
     Heating Model  electrical heating
     Shake speed  0-200 cycle /min
     Apability of dyeing cup  250ml
