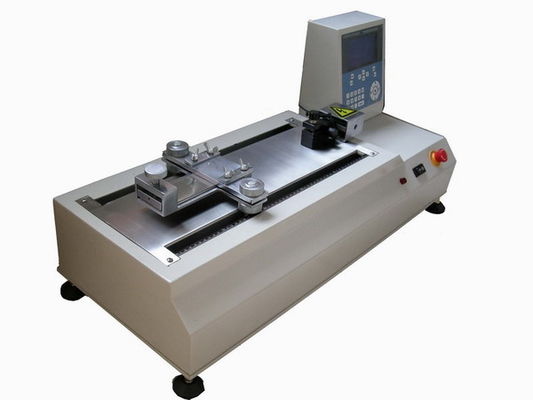

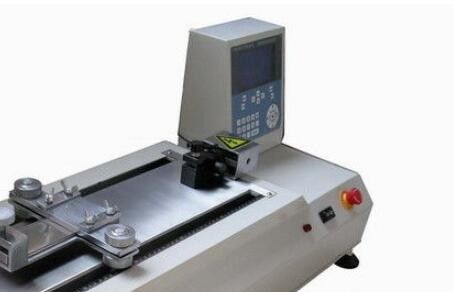

Computer Controlled Horizontal Tensile Testing Machine For Lifting Belt

Computer Controlled Horizontal Tensile Testing Machine For Lifting Belt

    • Computer Controlled Horizontal Tensile Testing Machine For Lifting Belt
    • Computer Controlled Horizontal Tensile Testing Machine For Lifting Belt
    • Computer Controlled Horizontal Tensile Testing Machine For Lifting Belt
  • Computer Controlled Horizontal Tensile Testing Machine For Lifting Belt

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: Calibration Certificate
    Model Number: SL-T808

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Neogitable
    Packaging Details: plywood case
    Delivery Time: 7 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Horizontal Tensile Testing Machine Resolution: 1/500000 Code
    Range: 600, 1000, 3000, 5000, 3000; Load Range: 2-100% FS. Stroke: 2000-5000 Mm
    Piston Stroke: 500-1500 Mm

    Tensile Strength Tester Computer Controlled Horizontal Tensile Testing Machine for Lift Belt


    Computer Controlled Horizontal Tensile Testing Machine


    It is used to lift belt, chain and rope type do products tensile testing of special equipment. According to the sample specification length can be adjusted step stretch space, computer control and display the test force and test curve, automatic processing according to the requirement of the test method of test data, has convenient operation and steady load, the body characteristics of bearing capacity.



    Features



    The machine adopts the frame overall steel welding horizontal frame structure, space adjustment done by oil cylinder drag bar, hydraulic automatic bolt. Through the electro-hydraulic servo loading system, using imported electro-hydraulic proportional servo valve closed loop control, complete test has high reliability and scientific.


    Application


    This tester is lifting belt, chain and rope type do products tensile testing of special equipment. According to the sample specification length can be adjusted step stretch space, computer control and display the test force and test curve, automatic processing according to the requirement of the test method of test data, has convenient operation and steady load, the body characteristics of bearing capacity.


    Feature
    The machine adopts the frame overall steel welding horizontal framework structure, space adjustment done by oil cylinder drag bar, hydraulic automatic bolt
    Main technical parameters
    Biggest test (kN): 600, 1000, 3000, 5000, 3000; Load range: 2-100% FS.
    Force test accuracy: + / - 1%; Test force resolution: 1/500000 code;
    Stretch space (not including piston stroke): 2000-5000 mm; (or customized).
    Piston stroke: 500-1500 mm; (or customized) minimum clamping distance: 1000 mm; Displacement measurement resolution: 0.01 mm.
    Piston idling speed fast forward: not less than 200 mm/min.
    The test speed: 0-120 - mm/min; Space adjustment methods and scope:
    Hydraulic cylinder pushing, bolt fixed
    Load mode: load sensor load;
    Controlled trial way: computer automatic control experiment process, computer screen test power and test curve, automatic processing according to the requirement of the test method of test data;
    Sample clamping method: based on sample provided by the user customization.
    It can display a variety of test curve: force - displacement and force - time, force - deformation, stress and strain, etc.
    Separating the console with the host, has the safe distance, the host has safety protection measures;
    Configuration facilities, including strength calibration system, anchor bolt, etc.; Power (KW): 2.5, 4.5, 10, 25, and 55.



    Computer Controlled Horizontal Tensile Testing Machine For Lifting Belt
