Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus

Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus

    • Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus
    • Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus
    • Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus
    • Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus
    • Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus
  • Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-SE04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Glow Wire Test Equipment Temperature Range: 500 ~ 750℃±10℃,750 ~ 960℃±15℃
    Burner Angle: 0,°20°, 45° (adjust Flame Height) Test Speed 18±3mm/s: 18±3mm/s
    Sample Pressure: 1N ± 0.2 N Standards: IEC60695 - 2 - 10 / 11 / 12 / 13,IEC60884-1GB2099.1IEC60335-1,GB4706.1,VDE0620

    Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus



    Application

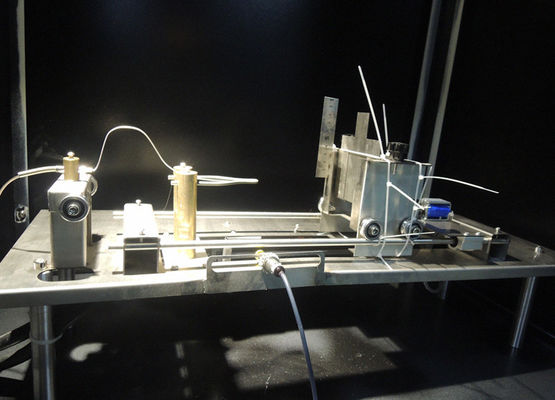

    a.The Glow Wire Tester is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.
    b.The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.

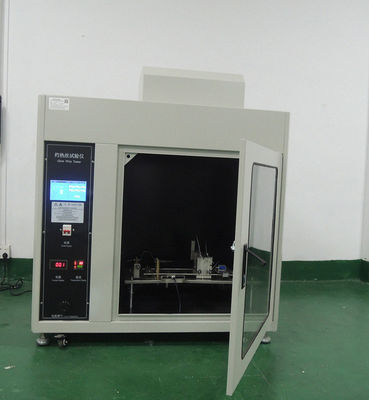

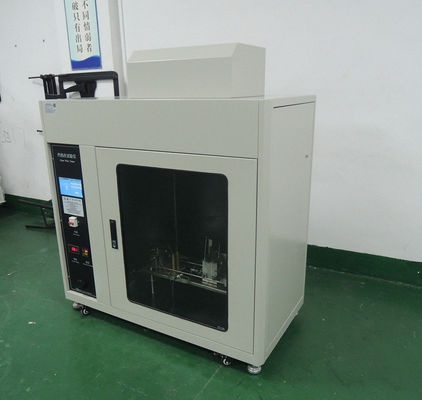

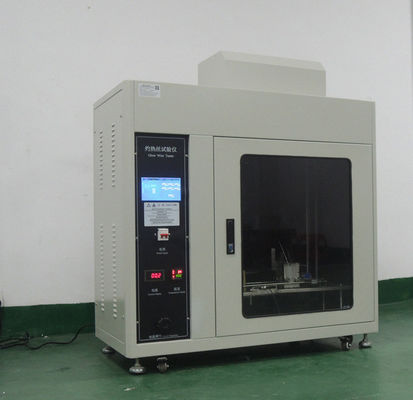

    c. A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.


    Technical parameters

     Glow wire diameter   4mm±0.04mmNi/Cr(80/20)
     Temperature range  500 ~ 750℃±10℃;750 ~ 960℃±15℃
     Thermocouple diameter   0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40~ 1100°C
     Searing Time   30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, preset table)
     Light-off Time   0-999.9 s ± 0.1 s, automatic recording, manual time out
     Fire out time  0-999.9 s ± 0.1 s, automatic recording, manual time out
     Ironing into depth   7mm ± 0.5 mm
     Sample pressure  1N ± 0.2 N
     Test speed   18±3mm/s
     Test background black background
     Test process automatic control, independent convulsions
     Chamber   ≥0.5m
     Control Using single chip microcomputer + touch screen control
     Power Supply   AC 220V,50Hz



    Standards

    IEC60695 - 2 - 10 / 11 / 12 / 13,IEC60884-1,GB2099.1,IEC60335-1,VDE0620


    Digital Electronic Testing Equipment Glow Wire Test Equipment / Apparatus
