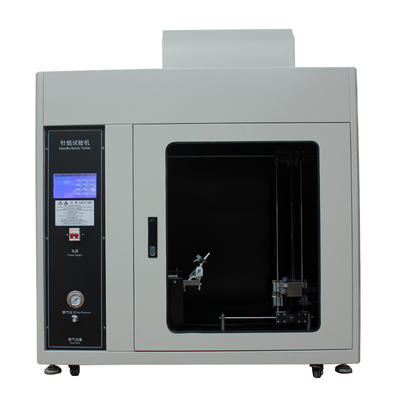

Electronic Product Flame Test Apparatus , IEC 60695 Needle Flame Test Chamber

Electronic Product Flame Test Apparatus , IEC 60695 Needle Flame Test Chamber

    • Electronic Product Flame Test Apparatus , IEC 60695 Needle Flame Test Chamber
    • Electronic Product Flame Test Apparatus , IEC 60695 Needle Flame Test Chamber
  • Electronic Product Flame Test Apparatus , IEC 60695 Needle Flame Test Chamber

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-SE03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Detailed Product Description
    Standards: IEC884-1, GB2099.1, VDE, IEC335, GB4706.1, GB5169.5, UL1694 Nner Hole Diameter: Nner Hole Diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ,
    Burner Angle: 0,°20°, 45° (adjust Flame Height) Power: 800VA ,220V, 48-60Hz
    Chamber: ≥0.5m3 Item No.: SL-SE03

    Electronic Product Flame Test Apparatus , IEC 60695 Needle Flame Test Chamber



    Introductions:



    Needle Flame Test Chamber is used to test the resistance of fire caused by an interior fault such as leakage current in cable & wire and the like. It meets the requirements of Chinese GB4706.1, GB5169.5, and IEC60695-2-2 and IEC61347-1 standards.


    Application:


    Electrical & electronic product
    Components and accessories of household appliances


    Features:



    a. All stainless steel and brass constructions.
    b.Burner can be ignited automatically.
    c.Temperature and test time display by digital meters.
    d.A big window in the door makes your viewing more convenient.



    Technical parameter:



    Needle burner

    inner hole diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ,

    length ≥ 35mm, stainless steel

    Burner angle 0,°20°, 45° (adjust flame height)
    Thermocouple

    Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand

    temperature-40°C~ 1100°C

    Burning time 0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
    Hold Burning time 0-999.9 s ± 0.1 s, automatic recording, manual time-out
    Flame Height 12mm ± 1mm (with height measurement instruments)
    Flame Gas butane gas/Butane gas, min. 95% purity (can use bottled lighter gases)
    Temperature Test Range 0~1000°C
    Flame Temperature Requirements from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds
    Standard Copper Block 4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP
    Test process automatic control, independent convulsions
    Chamber ≥0.5m3
    Control Using single chip microcomputer + touch screen control
    Consult standard GB/T5169.10-2006 , IEC60695-11-5:2000,UL746A
    Power Supply 800VA ,220V, 48-60Hz
    Display panel language English(customize available)
