Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610

Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610

    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
    • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610
  • Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-S19

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: neogitable
    Packaging Details: plywood case
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit / month
    Contact Now
    Detailed Product Description
    SKYLINE: 45 Degree Automatic Flammability Tester Standards: ASTM D1230, FTMS191-5908, CFR 16-1610, CALIF TB117
    Ignition Time: 0.1s Can Be Set Dimension: 400 X 300 X 500mm (L*W*H)
    Weight: 45kg Controller: PLC

    Toys 45 Degree Automatic Flammability Test Apparatus / Equipment CRF 16-1610



    Use
    This machine is suitable for testing the performance of textiles in children's pajamas and pants, or in the hands of consumers or from consumers. Tests for the flammability of textiles used in the manufacture of garments, the introduction of three types of flammability, the determination of the classification of textiles, and the use of single or multi-layer fabrics that are commercially viable as unsuitable garments and have the potential to burn. caveat.



    Description

    To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.



    Principle
    Under the specified conditions, the sample is placed at an angle of 45°, the sample is ignited for 1 s, and the time required for the sample to burn upward by a certain distance is used as a measure for assessing the degree of burning of the textile. Fabrics with surface piles, the ignition or melting of the base fabric as an additional indicator of the severity of the combustion, but need to be noted.



    Key Specification

     Time Display  0-99.9S
     Test box  37cm*22cm*35cm, top 12 vents with a diameter of 12.7mm
     Sample holder  45°
     Sample holder  upper plate slotted 38mm*152mm
     Sample size  50mm*150mm
     Bristle load  150gf
     Resolving Capability  0.1S
     Ignition time  1s or set it Set arbitrary
     Dimensions  420 x 260 x 520mm (L*W*H)
     Power  AC 220V / 50Hz / 2A
     Standards  ASTM D1230, CRF 16-1610
     Weight  20kg


    The distance between the nozzle axis and the rotating shaft: 44mm
    The nozzle is away from the sample surface: 8mm
    Fire mouth distance marking line: 127mm



    Please review video of the 45 Degree Automatic Flammability Tester operation  as below link:

    https://youtu.be/LkLZ_NMmh08

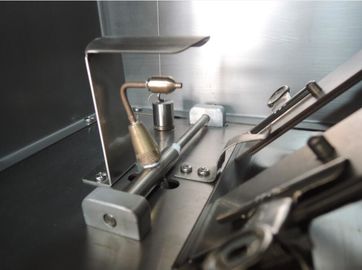

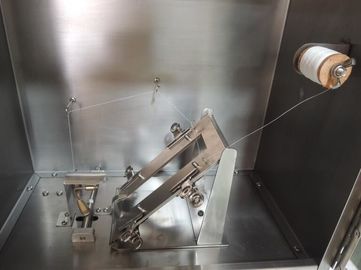

    45 Degree Flammaility Testing Equipment Automatic Flammability Test Apparatus / Equipment CRF 16-1610 Burner 45 Degree Flammaility Testing Equipment Automatic Flammability Test Apparatus / Equipment CRF 16-1610 Fixture



    45 Degree Flammaility Testing Equipment Automatic Flammability Test Apparatus / Equipment CRF 16-1610 Brush
