Innerspring Box Spring Mattress Testing Machine ASTM F1566 With Servo Actuator

China Innerspring Box Spring Mattress Testing Machine ASTM F1566  With Servo Actuator supplier
Innerspring Box Spring Mattress Testing Machine ASTM F1566  With Servo Actuator supplier Innerspring Box Spring Mattress Testing Machine ASTM F1566  With Servo Actuator supplier Innerspring Box Spring Mattress Testing Machine ASTM F1566  With Servo Actuator supplier Innerspring Box Spring Mattress Testing Machine ASTM F1566  With Servo Actuator supplier Innerspring Box Spring Mattress Testing Machine ASTM F1566  With Servo Actuator supplier

Large Image :  Innerspring Box Spring Mattress Testing Machine ASTM F1566 With Servo Actuator

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T07

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 30 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
Name: Mattress Rollator Testing Machine Controller: PLC+ Touch Screen
Motor: Sevro Actuator Standard: ASTM F1566, EN1957
Wooden Hex Barrel Weight: 109KG Cylinder Weight: 140 KG.

ASTM F1566 Innerspring Box spring Mattress Rollator Testing Machine with Servo Actuator


Product Information

It apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.


Detailed parameter:

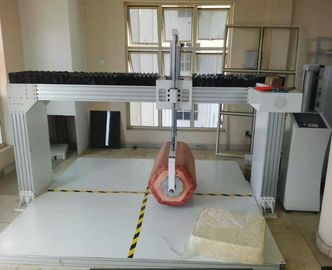

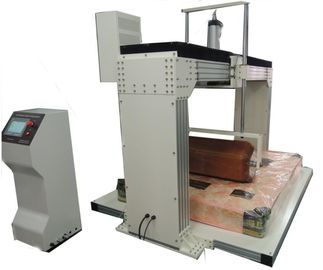

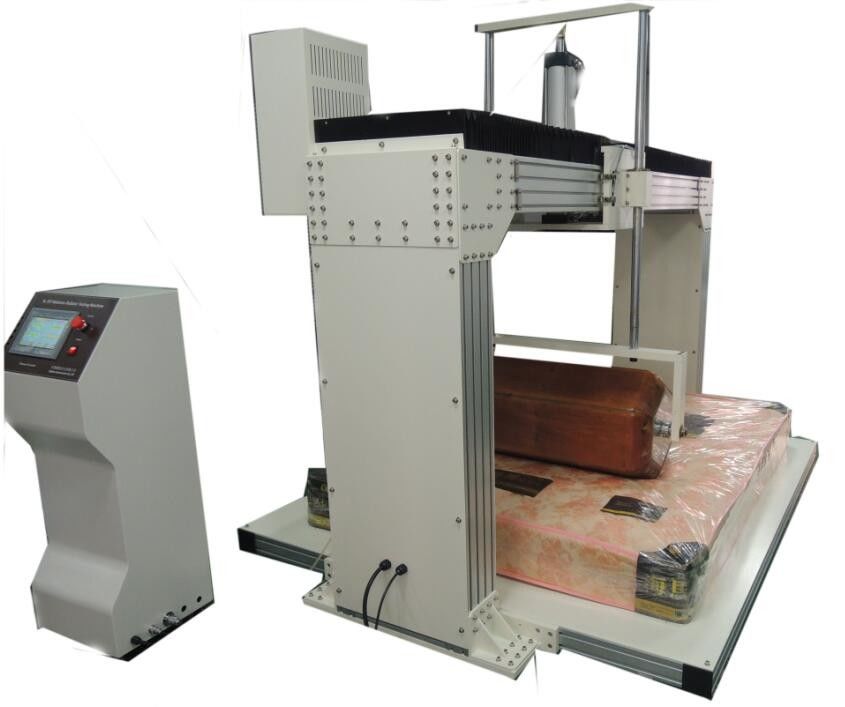

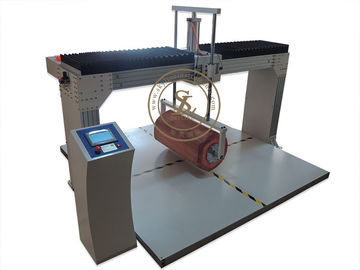

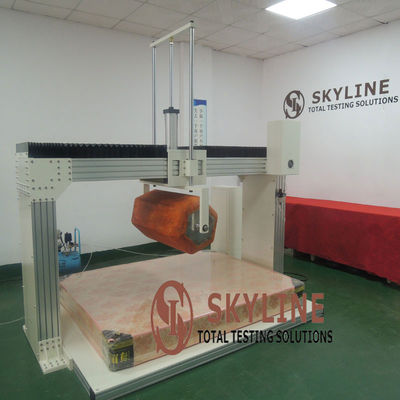

Use a horizontal scroll in wooden barrels or hex (at both ends of the cylinder diameter 250 mm, 300 mm, the middle part of the test on the mattress, scroll back to assess human action mattress durability.
Technical
Wooden hex barrel weight = 109KG, cylinder weight = 140 KG.
According to different mattress size, scroll, adjustable (adjustment of the limit switch)
Low friction coefficient guides to ensure that the barrel weight fully to the mattress.
Suitable mattress greatest dimension 2.3 X 2.5M.
Text display provides a simple manipulation and creation.



Testing Standards
ASTM F1566, EN1957



Technical parameters

 Imposed the pressure on mattress by a transducer, pressure range to 300KG
 Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N
 Pusher travel speed adjustable, about 160 weeks times per minute
 Suitable maximum specimen  2.2M ×2.2M
 Display Accuracy  0.001kgf
 Deformation precision  0.001mm
 Impact height  0-300mm adjustable
 Counter range  0-99999 times
 Machine size  (L×W×H) about 3000×2800×2500mm
 Weight  about 650Kg
