IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide

IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide

    • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
    • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
    • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
    • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
    • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
    • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
    • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
  • IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-S158

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 35 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Horizontal Thrust Tester For Swings And Slide Standard: ISO8124-4 6.1.2/ 6.1.4

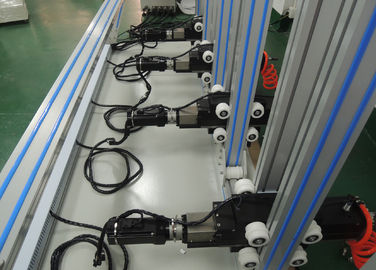

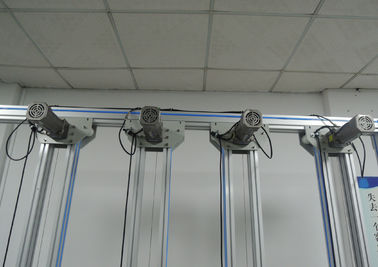

    Motor: 4 Servo Actuators Direction: Horizontal
    Loading Point Height: 30-180cm Material: Alu 80*80 Frame

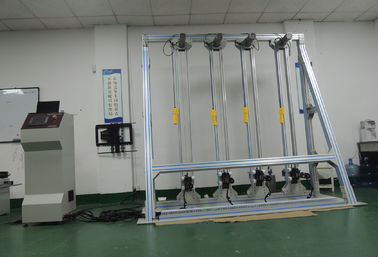

    ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide



    Application

    A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect.



    Main parameters

     Load cell capacity  0-2500N
     Accuracy  +/-0.5%
     Direction  Horizontal
     No of loading advice  4 in total
     Loading Point height  30-180cm
     Motor  4 servo actuators
     Controller  PLC+ Touch screen
     Test frame  Alu.material


    Standards

    ISO8124-4 6.1.2/ 6.1.4



    Procedure

    Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal
    surface.
    For a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not
    prevent the toy from overturning.
    Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with
    the anchors fixed to the standing surface in accordance with the manufacturer's instructions.
    On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the swinging
    direction. Where a swing element has multiple suspension points, distribute the load equally between the
    points (using Table 3 as a guide). Forces on multiple suspension points shall be applied in the same direction
    simultaneously.
    Observe whether the toy tips over



    IS 9873-4 /ISO 8124-4 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide
