| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE ISO |
| Model Number: | SL-M81 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case |
| Delivery Time: | 7 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 SETS/month |
| Conveying Liquid Time: | (20±0.1)s | Amount Of Conveyed Liquid: | (0.220±0.005)g |
|---|---|---|---|
| Conveying Liquid Outlet: | "O" Ring On The Sensor | Conveying Liquid Outlet Specification: | Stainless Steel Tube Inner Diameter 0.5mm |
| 7 Test Rings, One Or Two Ring Spacing: | 5mm ± 0.05mm, Other Ring Spacing: 4.5mm ± 0.05mm | Test Ring: | Composed Of Probes; Upper Probe Diameter: 1.54mm ± 0.05mm, Lower Probe Diameter: 1.2mm ± 0.02mm |
| The Number Of Probes Per Ring: | 4, 17, 28, 39, 50, 60, 72 | The Total Mass Of The Upper Sensor: | 1000g ± 15g, Data Acquisition Frequency> 10hz |
| Power Supply: | AC220V, 50Hz, Power: 300W | Weight: | About 40kg |
| High Light: | Textile Moisture Management Tester,AATCC 195 Moisture Management Tester,Textile MMT Test Equipment |
||

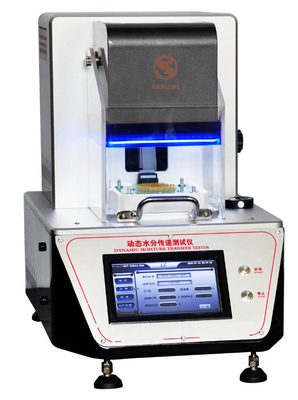

Used to test, evaluate and classify the dynamic transfer of liquid water properties of fabrics; to identify the water resistance, water repellency and water absorbency based on the fabric's organizational structure, including the fabric's geometric and internal structure as well as the core-absorption characteristics of the fabric's fibers and yarns.
AATCC195-2011,SN1689,GBT 21655.2-2009,GBT 21655.2-2019
1. Equipped with two sets of needle and disk test sensors to meet the requirements of new and old standards.
2. The specimen surface is made of imported special aluminum profile, which is made of lightweight material with smooth surface and never rust.
3. The instrument is equipped with imported motor control device, precise and stable control.
4. Advanced droplet injection system, precise and stable droplet, with liquid recycling function, to prevent the pipeline saline crystallization blocking pipeline.
5. Adopting high-quality gold-plated probe with high sensitivity, oxidation resistance and good stability.
6. Color touch screen display control, menu operation mode.
7. Supporting Wenzhou Fangyuan Instrument Co., Ltd. independent research and development of the FY-Meas & Ctrl measurement and control system, including: (1) hardware: measurement and control of multi-functional circuit boards; (2) software: ① V1.0 multi-functional test software; ② FY-Meas & Ctrl 2.0 multi-functional measurement and control software.
8. The whole machine adopts high-quality electrostatic spraying processing, beautiful and easy to clean and maintain.
9. The test results are automatically rated (5 levels of the best degree, 1 level of the worst).
|
1.Test data: |
|
|
Wetting time (immersion surface); Wetting time (infiltration surface); Absorption rate AT; Absorption rate AB; Maximum radius of immersion (immersion surface); Maximum radius of immersion (infiltration surface); Diffusion rate ST; Diffusion rate SB; Unidirectional transfer index; Comprehensive performance of dynamic transfer of liquid water. |
|
|
2.Test Fluid Delivery System A: |
|
|
Conveying liquid time |
(20±0.1)s |
|
Amount of conveyed liquid |
(0.220±0.005)g |
|
Conveying liquid outlet |
"O" ring on the sensor |
|
Conveying liquid outlet specification |
Stainless steel tube inner diameter 0.5mm |
|
3.Test Fluid Delivery System B: |
|
|
Conveying liquid time |
20s |
|
The amount of conveyed liquid |
0.2g ± 0.01g |
|
Conveying liquid outlet |
"O" ring on the sensor |
|
Conveying liquid outlet specifications |
Stainless steel tube inner diameter 0.5mm |
|
4.Upper and lower sensor A: |
|
|
7 test rings, one or two ring spacing |
5mm ± 0.05mm, other ring spacing: 4.5mm ± 0.05mm |
|
Test ring |
Composed of probes; upper probe diameter: 1.54mm ± 0.05mm, lower probe diameter: 1.2mm ± 0.02mm |
|
The number of probes per ring |
4, 17, 28, 39, 50, 60, 72 |
|
The total mass of the upper sensor |
1000g ± 15g, data acquisition frequency> 10hz |
|
5.Test time |
120s |
|
6.Test |
One-key to start the test, the motor automatically drives the test head to the specified position after clicking start, automatically starts the test, and automatically returns after the test is finished; |
|
7.Droplet injection system |
Precise and stable dripping, with a reverse pumping system can be reversed rotation, the remaining saline in the infusion tube will be pumped back to the storage tank, to prevent the saline crystals clogging the pipeline |
|
8.Power supply |
AC220V, 50Hz, power: 300W |
|
9.Weight |
about 40kg |
1. Host computer One set
2. A set of test sensor
3. Liquid dispensing bottle two
4. One bottle of test liquid
5. Instrument instruction manual
6. A certificate of conformity for the use of the instrument
1. Lenovo brand computer
2. Inkjet printer
3. A set of cleaning device for needle and disk measurement sensor
