| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | ISO |
| Model Number: | SL-T804 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | polywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 pcs per month |
| Capicity Selection: | 5,10,20,50,100,200,500kg | Data Sampling Frequency: | 200 Times/sec |
|---|---|---|---|
| Effective Test Width: | 150mm | Stretch Space Effectively: | 800mm |
| Test Speed Range: | 50-300 Mm/min | Machine Weight: | 100kg |
| Machine Size: | 500×400×1820mm | Unit Switching: | Kg,lb,N |
| High Light: | 500kg Tensile Strength Test Machine,Velcro Tape Tensile Strength Test Machine |
||

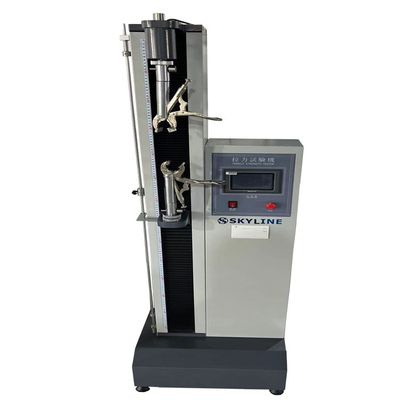

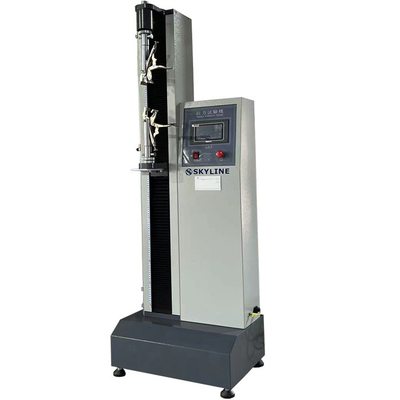

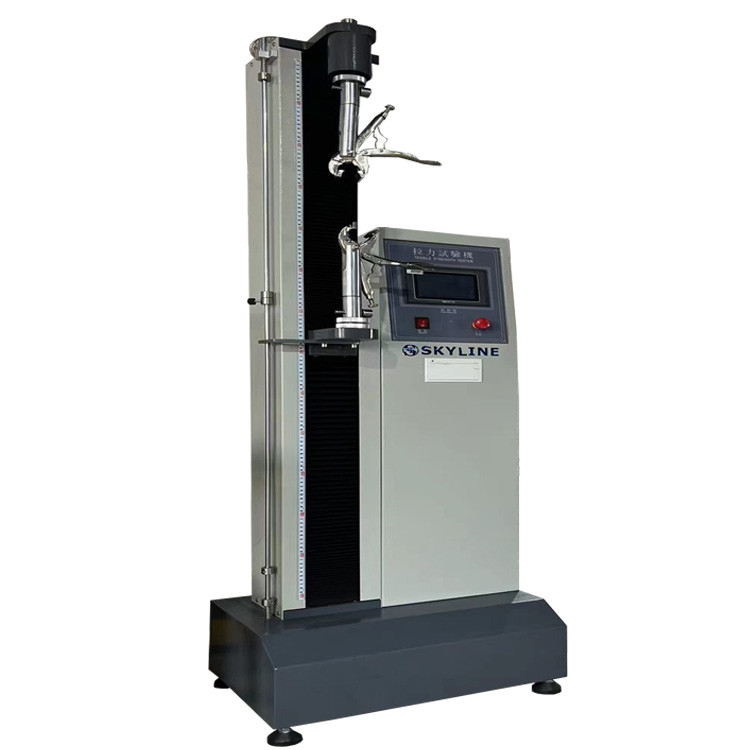

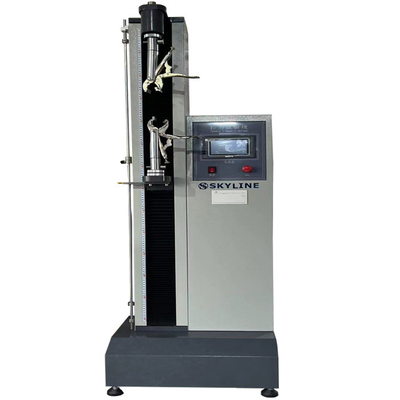

It is used for the mechanical property test of non-metallic materials such as rubber, plastic, wire and cable, textile, waterproof materials, non-woven fabrics and metal wires, metal foils, metal plates and metal bars. It is also suitable for the tensile, compression, peeling, shear and tear tests of various finished products with special clamps to judge the product quality.
It can store the results of 10 test reference points, automatically calculate their average value, automatically grab the maximum value, and the force value when breaking. The force value is output by the sensor, fed back to the display, and the test displacement is displayed in real time. It can realize the test of force setting value, positioning displacement, etc.
The machine includes a thermal printer, which can automatically output test results.
The machine has simple structure and convenient operation, and can be directly placed on the floor of the working room for testing. It is especially suitable for testing instruments used in production line to control product quality. This series of models are mainly applicable to the test of non-metallic and metal materials with test load less than 5000N.
1. 10 test reference point results can be stored, automatically calculate its average value, automatically grab the maximum value, the force value at the time of fracture.
2. The force value is output by the sensor, feedback display, and the test displacement is displayed in real time.
3. It can realise the test of fixed force value and positioning shift.
4. The machine contains a thermal printer, which can automatically output the
test results
|
Capacity |
5KN |
|
Force Measurement Accuracy |
±1％ |
|
Display Mode |
Touch screen control |
|
Unit switching |
Kg,lb,N |
|
Data sampling frequency |
200times/sec |
|
Tester Resolution |
Maximum load 1/±25,000 yards, internal and external not graded, and the whole resolution is unchanged |
|
Load cell |
Basic configuration: pull, pressure sensor (maximum load) |
|
Effective test width |
150mm |
|
Effective tensile space |
800mm |
|
Test speed range |
50-300mm/min stepless speed regulation and 5 fixed speeds (special test speeds can also be customised according to customer requirements) |
|
Displacement Measurement Accuracy |
±1％ |
|
Breakpoint ratio setting |
0-99%, users can set the appropriate break down time according to different materials |
|
Safety device of test bench |
Upper and lower stroke limiting device |
|
Overload protection |
If the maximum load exceeds 10%, the machine will be automatically protected |
|
Fixture Configuration |
One set of tensile fixture |
|
Dimensions |
550×400×1820mm |
|
Main body weight |
100 Kg |
