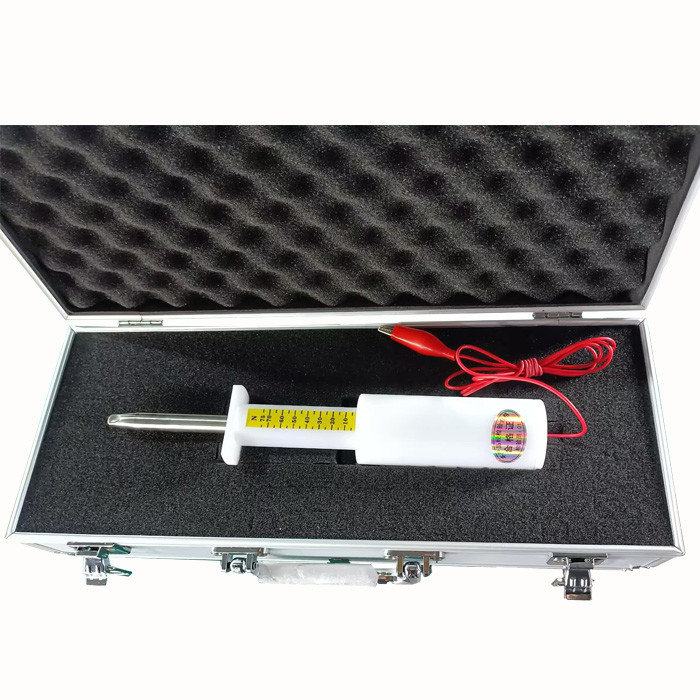

Name: IEC 61032 75N Test Probe 11 Rigid Finger Probe Anti Shock Test Finger Probe 11
Brand: SKYLINE
SKU: SL-P11
Rating: 4.9 (134 reviews)

Home Products Test Equipment

IEC 61032 75N Test Probe 11 Rigid Finger Probe Anti Shock Test Finger Probe 11

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-P11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

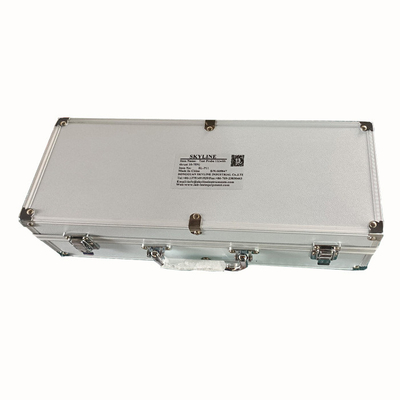

Packaging Details:	Export Packaging
Delivery Time:	7 Working Days
Payment Terms:	T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Materials:	Nylon Stainless Steel	Nodular Finger Length:	80mm
Nodular Finger Diameter:	12mm	Dam-board Diameter:	50mm
Dam-board Thickness:	5mm	Standard:	IEC61032-Probe 11-Figure 7
High Light:	Anti Shock rigid test finger , rigid test finger Probe 11

Product Description

Complies with IEC61032 Figure 7 Test Rig 11, GB/T16842 Test Probe 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, GB4706 and other standard requirements. It can also be used to test the mechanical strength of the holes in the housing or the internal baffle of the housing.

Can be ordered with 10~50N thrust.

Can be ordered with 10~75N thrust.

Test Finger Usage

1. As shown in the figure, the finger portion of the thrust test finger cannot touch the energized parts or cannot approach the dangerous parts, and the 50mm-20mm stopper cannot be entered.

2. In the test requirements for preventing access to dangerous parts, the thrust test finger needs to apply thrust.

IEC 61032 75N Test Probe 11 Rigid Finger Probe Anti Shock Test Finger Probe 11 0

Technical Parameters

Materials	Nylon+Stainless Steel
Nodular Finger Length	80mm
Nodular Finger Diameter	12mm
Dam-board Diameter	50mm
Dam-board Thickness	5mm
Standard	IEC61032 Figure 7
Force	10-75N
