| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE , Calibration Certificate |
| Model Number: | SL-BT97 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |
| Weight: | 160KG | Power Supply: | AC220V,15A |
|---|---|---|---|
| Dimension: | Test Bench:1950*450*900mm | Frame Fatigue Fixture: | 1set |
| Maximum Frequency Of The Machine: | Computer Automatic Control, With Displacement, Force, Time And Other Control Methods | Sensor Capacity: | Disc Type Sensor 5000N*1pcs |
| Load Element Resolution: | 1/10000 | Electric Cylinder: | Electric Cylinder Servo Control |
| Displacement Stroke: | 150mm(±75mm) | Number Of Tests: | 0-999999 Set Arbitrarily |
| Control Method: | Force Fully Closed-loop Control | Control Software: | Self-developed Special Software |
| Display Method: | Computer Control And Monitor | Data Acquisition: | High-speed Acquisition Card |
| Force Acquisition Frequency: | ＞200KHz | Force Waveform: | Sine Wave |
| Automatic Stop: | Automatic Stop When The Force Does Not Reach The Setting, Automatic Stop When The Test Piece Is Damaged | Report Printing Format: | Self-saving Test Results To Make Reports |

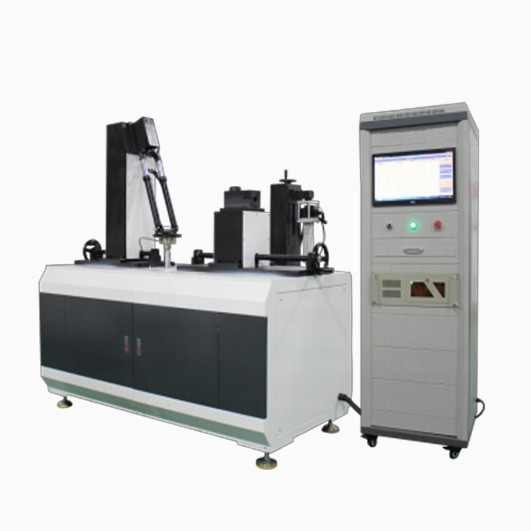

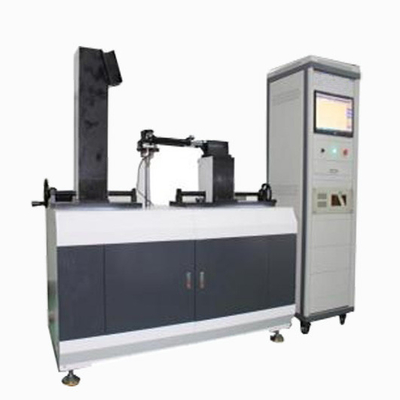

| High Light: | Bike Fork Bending Fatigue Tester,Bicycle Fork Bending Fatigue Tester |
||
A full alternating, cyclic dynamic load Fo, in the plane of the wheel and perpendicular to the axis of the fork riser, was applied to a load carrying device that rotated on the pivot of the fork joint. The test cycle is 100,000 cycles and the test force values are shown in Table 9. The maximum test frequency is described in ISO 4210- 3:2014, 4.5.
If the maximum displacement at the point of application exceeds 20% for rigid forks (40% for shock forks), the test is terminated. (See ISO 4210- 3:2014, 4.6)
After 100000 runs, stop the test and carefully inspect the sample for cracks. If cracks are found, terminate the test.
If, after 100000 runs, the sample is not displaced as described above and, furthermore, no cracks are present in the sample, continue with the impact test as described in 5.4.1 (see Table 7 for landing height). After the impact hammer has come to rest on the roller, measure the displacement deformation and carefully inspect the sample for cracks.
1. Force-bearing device mounted on the pivot
2. Rigid support with fork assembly
Applied force value
| Type of bicycle | City Bikes | Children's bikes | Mountain Bikes | Racing |
| Force Value F/N | ±450 | ±450 | ±650 | ±620 |
| Maximum frequency of the machine | 0-5Hz |
| Sensor capacity | Disc type sensor 5000N*1pcs |
| Load element resolution | 1/10000 |
| Electric cylinder | Electric cylinder servo control |
| Displacement stroke | 150mm(±75mm) |
| Number of tests | 0-999999 set arbitrarily |
| Control method | force fully closed-loop control |
| Maximum frequency of the machine | computer automatic control, with displacement, force, time and other control methods |
| Control software | Self-developed special software |
| Display method | Computer control and monitor |
| Data acquisition | High-speed acquisition card |
| Force acquisition frequency | ＞200KHz |
| Force waveform | Sine wave |
| Automatic stop | Automatic stop when the force does not reach the setting, automatic stop when the test piece is damaged |
| Report printing format | Self-saving test results to make reports |
| Frame Fatigue fixture | 1set |
| Weight | 160KG |
| Power supply | AC220V,15A |
| Dimension | Test bench:1950*450*900mm Control cabinet: 600*600*1830mm (L*W*H) |
