| Model Number: | SL-BT89 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |
| Control Method: | Force Fully Closed-loop Control | Maximum Frequency Of The Machine: | Computer Automatic Control, With Displacement, Force, Time And Other Control Methods |
|---|---|---|---|
| Control Software: | Self-developed Special Software | Display Method: | Computer Control And Monitor |
| Data Acquisition: | High-speed Acquisition Card | Force Acquisition Frequency: | ＞200KHz |
| Force Waveform: | Sine Wave | Automatic Stop: | Automatic Stop When The Force Does Not Reach The Setting, Automatic Stop When The Test Piece Is Damaged |
| Report Printing Format: | Self-saving Test Results To Make Reports | Test Fixture Optional: | 1) 1 Set Of Frame Pedal Fatigue Fixture. 2) 1 Set Of Front Fork Bending Dynamic Jig. 3) 1 Set Of Handlebar Fatigue Jig 4) 1 Set Of Saddle Fatigue Jig. |
| Weight: | 400KG | Power Supply: | AC220V,15A |
| Dimension: | Control Cabinet: 600*600*1800mm (L*W*H) | ||
| High Light: | CE Dynamic Fatigue Tester,200KHz Dynamic Fatigue Tester,CE Dynamic Fatigue Testing Machine |
||

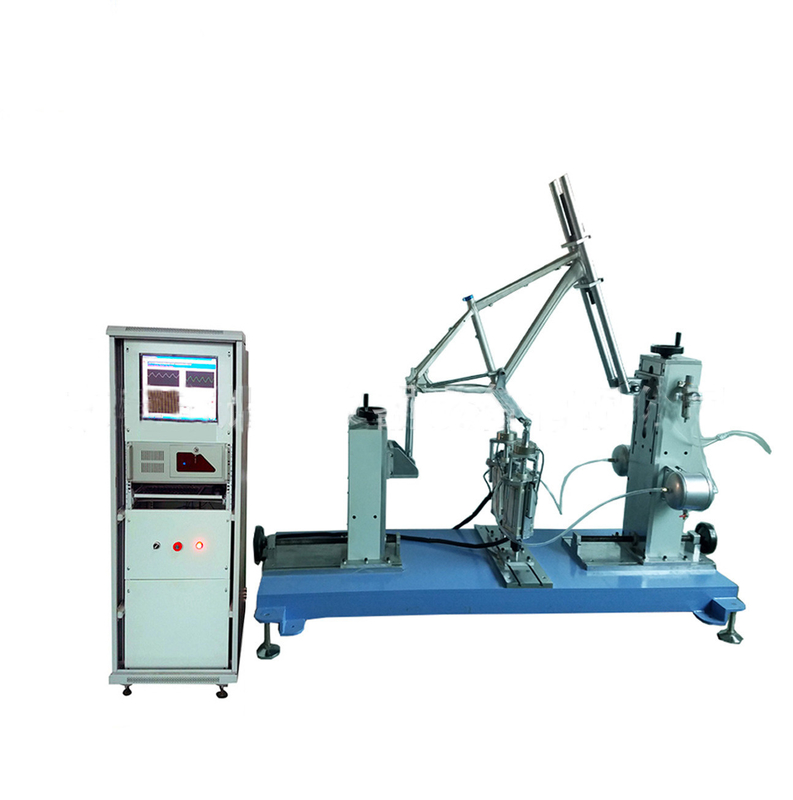

This machine for bicycle frames to do fatigue testing. It can test bicycle frame pedal fatigue test EN 15194 electric bicycle, ISO4210-6.4.3 all styles of frame of this test specification.
EN 15194 electric bicycle, ISO4210, EN14781 roadster, EN14766 mountain bike, EN14764 city car. designed by CNS, JIS, DIN, NF, ISO, CPSC, CSA, AS, BS nine countries testing standards.
| Maximum frequency of the machine | 5Hz |
| Sensor capacity | Disc type sensor 5000N*2pcs |
| Load element resolution | 1/10000 |
| Electric cylinder | Electric cylinder servo control |
| Displacement stroke | 150mm(±75mm) |
| Number of tests | 0-999999 set arbitrarily |
| Control method | force fully closed-loop control |
| Maximum frequency of the machine | computer automatic control, with displacement, force, time and other control methods |
| Control software | Self-developed special software |
| Display method | Computer control and monitor |
| Data acquisition | High-speed acquisition card |
| Force acquisition frequency | ＞200KHz |
| Force waveform | Sine wave |
| Automatic stop | Automatic stop when the force does not reach the setting, automatic stop when the test piece is damaged |
| Report printing format | Self-saving test results to make reports |
| Test fixture optional |
1) 1 set of frame pedal fatigue fixture. 2) 1 set of front fork bending dynamic jig. 3) 1 set of handlebar fatigue jig 4) 1 set of saddle fatigue jig. |
| Weight | 400KG |
| Power supply | AC220V,15A |
| Dimension | Test bench:1700*1300*2400mm Control cabinet: 600*600*1800mm (L*W*H) |
Computer on-line function description
1. Signal conversion controller.
(1) Load sensor
(2) Signal conversion collector
2. Basic functions Execute the saddle tube test program to obtain the following information.
(1) Real-time force vs. time curve
(2) Real-time frequency versus time curve
(3) Maximum value of tensile force
(4) Real-time values of fracture
(5) Comparison of graphs
(6) Standard deviation
(7) Average value
(8) The two replacement cranks are 175 mm long (L) and the two replacement cranks are adjusted back and forth to an inclined horizontal angle of 45° (tolerance ±2°)
The vertical position of the replacement crank is 75mm (Rc) from the frame centerline at a distance of 50mm to the rear axle base mandrel, and the rear axle center is at right angles to the vertical line.
Note: Please refer to ISO 4210-3:2014, 4.5 for test frequency
Force value applied to the stirrups
| Type of bicycle | City Bikes | Children's bikes | Mountain Bikes | Racing |
| Force Value F/N | 1000 | 1000 | 1200 | 1100 |
