Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE , Calibration Certificate |
| Model Number: | SL-BT88 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |
| Seat Tube Load: | Adult, Stroller 70Kg, Baby Carriage 30Kg | Frame Fall Height: | 200-300mm |
|---|---|---|---|
| Control Mode: | Electric Control | Height Marking Scale: | Can Be Adjusted According To The Height Of The Test Piece Combination Zero Mark |
| The Upper And Lower Limit Moving Device: | Upper And Lower Limit Protection Switch And Positioning | Falling Trigger: | Electromagnetic Clutch Device |
| Dimension: | 2000*700*1750 Mm (W*D*H) | Weight: | About 160KG |
| Power Supply: | AC220V,15A | ||
| High Light: | Frequent Vibration Durability Tester,Combination Impact Tester,Fork Combination Impact Tester |
||

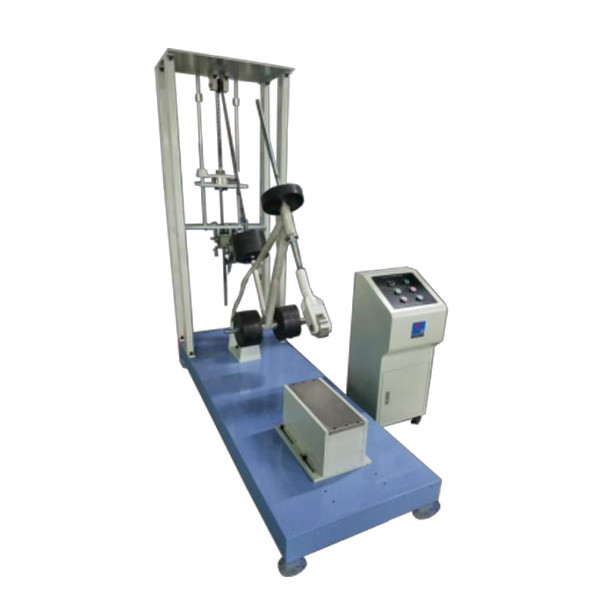

This machine is used to simulate the impact on the frame and fork when the front wheel leaves the ground, when it is hit or when it is subjected to vibration.
All types of frames in accordance with ISO 4210-6.4.2, GB3565 and GB17761.
1. Select the appropriate axle to fix the lightweight roller with a weight less than or equal to 1Kg to the front fork and the rear fork of the frame to the test bench. 2. Adjust the front and rear position of the steel drill so that the centre of the roller is located directly above it when it is dropped. 3. Fix the standard weights to the various positions of the frame according to the standard.
4. Turn on the drop power switch to energise the drop solenoid and attach the lightweight roller to the solenoid. 5. Adjust the hand wheel above the steel drill so that the centre of the roller moves to the drop position (the height of the drop is indicated by a scale). 6. Press the drop button and the frame assembly does a free fall movement to impact, completing the first test (the test is repeated 2 times).
7. After the test is completed, check whether there are cracks and deformation of the assembly, and judge whether it is qualified according to the standard.
Weight distribution and landing height at the saddle tube, front tube and centre axis
| Type of bicycle | City Bikes | Children's bikes | Mountain Bikes | Racing |
| Heavy object 1 Saddle tube M1 KG | 50 | 40 | 30 | 30 |
| Heavy object 2 Front tube M2 KG | 10 | 10 | 10 | 10 |
| Heavy object 3 Central axis M3 KG | 30 | 20 | 50 | 50 |
| Landing height MM | 200 | 200 | 300 | 200 |
| Seat tube load | adult, stroller 70Kg, baby carriage 30Kg |
| Frame fall height | 200-300mm |
| Control mode | electric control |
| Height marking scale | can be adjusted according to the height of the test piece combination zero mark |
| The upper and lower limit moving device | upper and lower limit protection switch and positioning |
| Falling trigger | electromagnetic clutch device |
| Dimension | 2000*700*1750 mm (W*D*H) |
| Weight | about 160KG |
| Power supply | AC220V,15A |
