Place of Origin: | CHINA |
Brand Name: | SKYLINE |
Certification: | CE , Calibration Certificate |
Model Number: | SL-OA55 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | negotiated |
Packaging Details: | plywood case |
Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10 unit / month |
Name: | Lube Oil Analysis Tester | Standard: | ASTM D892 |
---|---|---|---|
Temperature Of Thermostatic Bath: | 24 ℃ (optional Throw In Cooler) 93.5 ℃ | Emperature Control Accuracy: | ± 0.5 ℃ |
Heater Power: | 2500W (93.5 ℃ Bathtub) 800W (24 ℃ Bathtub) | Temperature Measuring Element: | Platinum Resistance (PT100) |
Diameter Of Gas Diffusion Head: | 25.4mm ± 0.02 | Keywords: | Oil Analysis Equipment |
Power Supply Voltage: | AC220V ± 10% 50Hz | Air Permeability Of Diffuser: | 3000 ~ 6000mL/min At 2.4KPa (250mmH O) |
Specification Of Experimental Measuring Cylinder: | 1000mL (suitable For Measuring Cylinder) | Flow Control: | 16-160ml/min Float Flowmeter, Adjustable. With 94ml/min Marking Mark |
Boundary Dimension: | 1000mm * 340mm * 740mm | Weight: | 46kg |
High Light: | ASTM D892 Lubricating Oil Testing Equipment,ASTM D892 Lube Oil Analyzer,Lube Oil Analysis Tester |

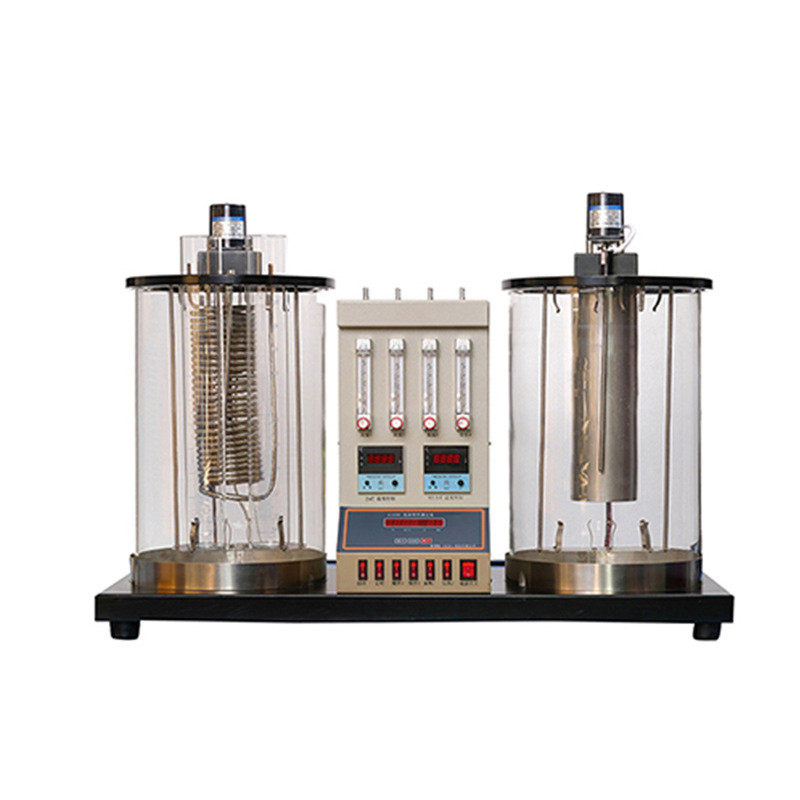

The foam characteristics tester meets the standard of GB/T12579-90 Determination of foam Characteristics of Lubricating Oils. The instrument takes the single chip microcomputer as the core to realize the automatic control of temperature, digital display of temperature and other contents. The gas diffusion head adopts a detachable structure, which is convenient for the cleaning and replacement of the diffusion head; The constant temperature water bath is equipped with two cylinders, which can conduct the oil test at 24 ℃ and 93 ℃ at the same time.
It is suitable for measuring the foam characteristics of engine lubricating oil, gear oil, hydraulic oil and other oil products to evaluate the tendency of oil products to generate foam and the stability of foam. It is widely used in petrochemical power railway, scientific research and other departments.
High precision digital display temperature control mode is adopted.
It is characterized by high temperature control accuracy, intuitive display, automatic temperature control, automatic timing, centralized control of air source and gas flow, simple operation, high technology content, and digital electronic timing function.
The instrument adopts split and integrated combination, which is convenient to move.
Power supply voltage | AC220V ± 10% 50Hz |
Temperature of thermostatic bath | 24 ℃ (optional throw in cooler) 93.5 ℃ |
Temperature control accuracy | ± 0.5 ℃ |
Heater power | 2500W (93.5 ℃ bathtub) 800W (24 ℃ bathtub) |
Temperature measuring element | platinum resistance (PT100) |
Diameter of gas diffusion head | 25.4mm ± 0.02 |
Air permeability of diffuser | 3000 ~ 6000mL/min at 2.4KPa (250mmH O) |
Specification of experimental measuring cylinder | 1000mL (suitable for measuring cylinder) |
Flow control | 16-160ml/min float flowmeter, adjustable. With 94ml/min marking mark |
Boundary dimension | 1000mm * 340mm * 740mm |
Weight | 46kg |
